Product Overview
A Phase-Shift Rectifier Transformer is a special type of power transformer designed to reduce harmonic distortion, improve power factor, and enhance energy efficiency in rectifier and inverter systems. By introducing a phase shift between primary and secondary windings, it enables multi-pulse rectification (such as 12-pulse, 18-pulse, or 24-pulse systems), which significantly decreases total harmonic distortion (THD) and ensures stable power supply for sensitive industrial applications.
At ZTelec Yuguang, we specialize in designing and manufacturing high-performance Phase-Shift Rectifier Transformers, tailored to meet the specific needs of power electronics, renewable energy, and heavy-duty industrial systems.
Key Features
- Harmonic Suppression – Reduces THD and complies with IEEE/IEC standards.
- High Reliability – Robust insulation materials and advanced winding technology ensure long service life.
- Energy Efficiency – Optimized design for reduced losses and improved power utilization.
- Custom Configurations – Supports 6-pulse, 12-pulse, 18-pulse, and 24-pulse rectifier systems.
- Wide Power Range – Suitable for medium- to large-capacity rectifier and inverter applications.
- Durability – Designed to withstand thermal, mechanical, and electrical stresses.

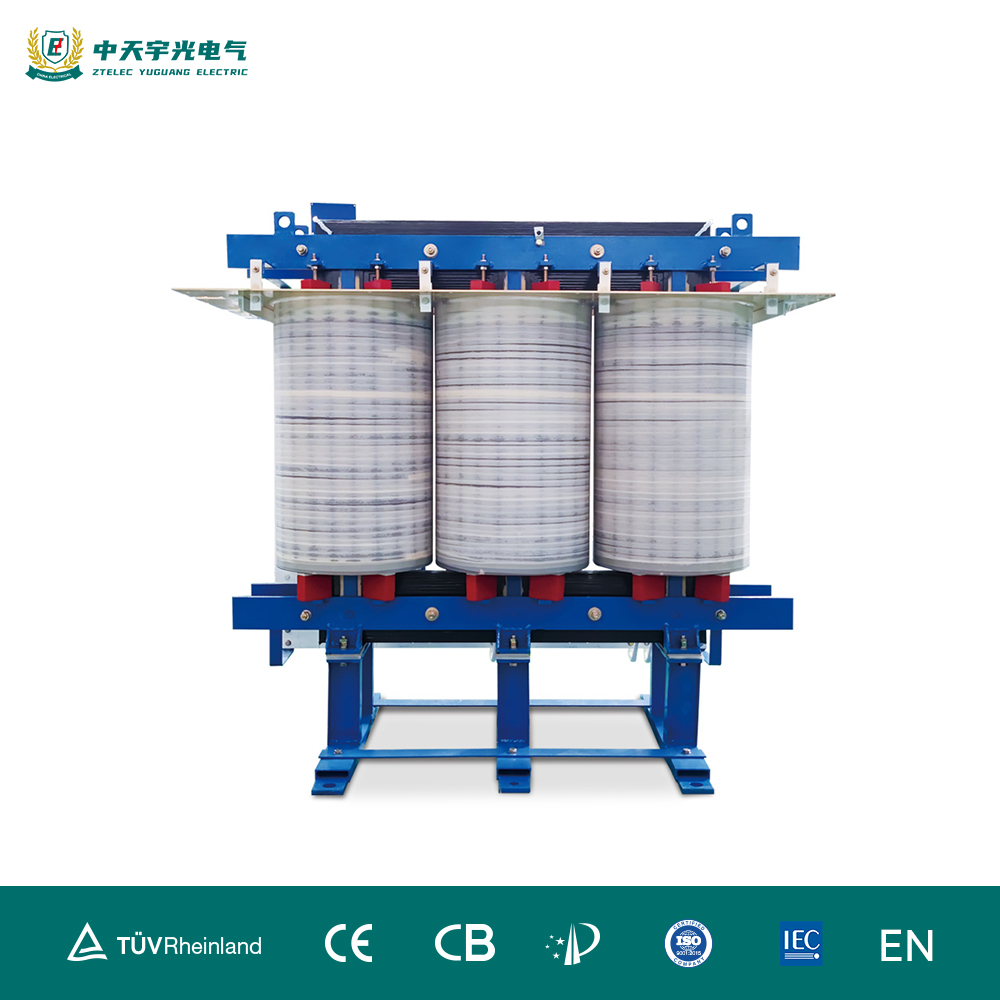

Phase Shifting Transformer for MV/HV VFD
Typical Applications
Phase-Shift Rectifier Transformers are widely used in:
- Inverter Systems (solar, wind, energy storage)
- Variable Frequency Drives (VFDs) for motors and compressors
- Electrolysis and Electrowinning Equipment in metallurgy
- DC Power Supply Systems for industrial processes
- HVDC Transmission and large-scale power electronics
Technical Parameters (Typical)
| Parameter | Range / Options |
|---|---|
| Rated Capacity | 100 kVA – 20,000 kVA |
| Primary Voltage | 6 kV – 35 kV |
| Secondary Voltage | Custom per application |
| Frequency | 50 Hz / 60 Hz |
| Phase Shift Angle | 7.5°, 15°, 30°, or customized |
| Cooling Method | ONAN / ONAF / OFWF |
| Insulation Class | Class F or Class H |
| Pulse Numbers | 6 / 12 / 18 / 24-pulse |
(Custom designs available upon request.)
-
- Phase-Shifting Rectifier Adjustable Voltage Transformer
-
- Phase-shift Rectifier Transformer
-
- Three Phase Five Limb Rectifier Transformer
Why Choose ZTelec Yuguang?
- Manufacturer Direct Supply – Competitive pricing with no middleman.
- Decades of Expertise – Proven track record in transformer R&D and production.
- Global Projects – Exported to Europe, Southeast Asia, Middle East, and Africa.
- ISO & CE Certified – Products comply with international standards.
- Engineering Support – Custom technical solutions and fast delivery.
Call to Action
Looking for a reliable Phase-Shift Rectifier Transformer manufacturer? Contact ZTelec Yuguang today for a quote or customized solution that meets your inverter or rectifier system requirements.
