Outdoor Prefabricated Substation 10kV–35kV

01-30 2026 | By:

Turnkey Power Distribution Solution

Factory-built Outdoor Prefabricated Substations designed for 10kV, 20kV and 35kV medium-voltage systems, with transformer capacity up to 10000 kVA. Our turnkey solutions are widely used in utility networks, EPC projects, industrial plants and renewable energy applications, ensuring fast deployment, high safety and long-term reliability.

What Is an Outdoor Prefabricated Substation?

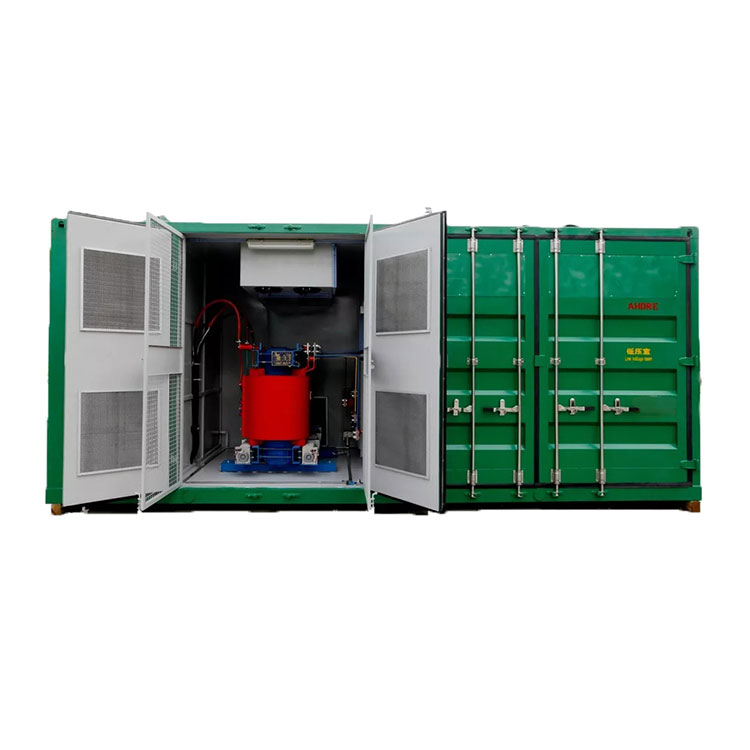

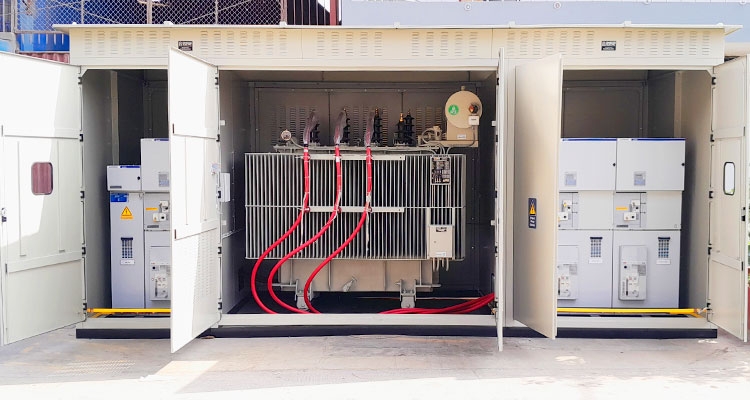

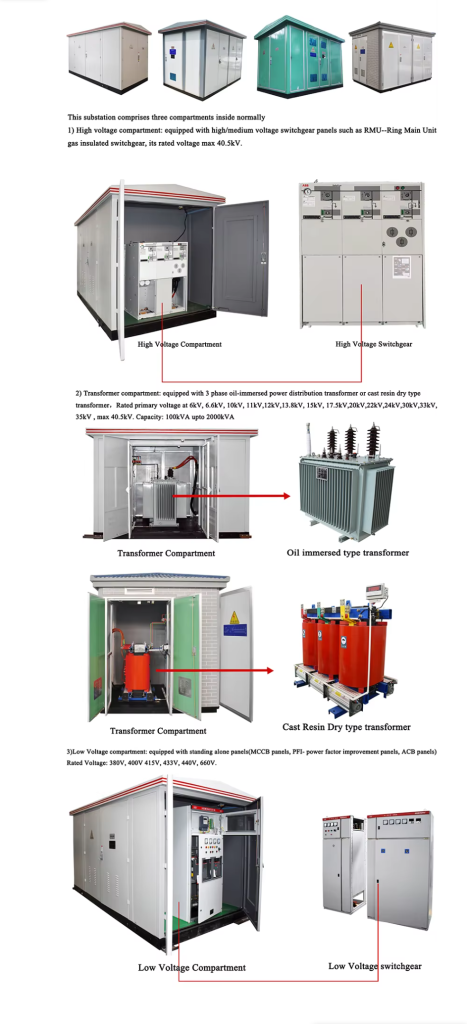

An outdoor prefabricated substation is a factory-assembled and fully integrated power distribution system that combines:

• Medium-voltage switchgear

• Power or distribution transformer

• Low-voltage switchgear

• Protection, control and auxiliary systems

All components are assembled, wired and tested in the factory before delivery, allowing rapid on-site installation and commissioning with minimal civil work.

Depending on project requirements, prefabricated substations are also commonly referred to as:

Compact Substation, Package Substation, Containerized Substation, E-House, Modular Substation or Skid-Mounted Substation.

Why Choose Our Prefabricated Substation?

Turnkey Design for EPC & Utility Projects

Our prefabricated substations are delivered as a complete turnkey solution, reducing project coordination complexity and shortening construction schedules.

High Safety & Reliability

Fully enclosed metal or concrete housings provide excellent protection against weather, dust and unauthorized access, ensuring safe outdoor operation.

IEC-Compliant Engineering

Designed and manufactured in accordance with IEC and international standards, suitable for global utility and EPC tenders.

Compact Footprint

Optimized internal layout minimizes land use while maintaining easy access for operation and maintenance.

Flexible Customization

Voltage level, transformer type, enclosure design and protection scheme can be customized based on project requirements.

Technical Specifications

Specifications can be engineered according to site conditions and project standards.

Typical Applications

Outdoor prefabricated substations are widely used in:

• Utility distribution networks

• Solar and wind power plants

• Industrial plants and manufacturing facilities

• Mining, oil & gas projects

• Infrastructure projects (railways, airports, highways)

• EPC and turnkey power distribution projects

Their modular and factory-built nature makes them ideal for both urban and remote installations.

Standards & Certifications

Our prefabricated substations comply with major international standards, including:

• IEC 62271 – Medium-voltage switchgear

• IEC 60076 – Power transformers

• IEC 61439 – Low-voltage switchgear assemblies

• IEC 60529 – IP protection ratings

• ISO 9001 / ISO 14001 – Quality and environmental management

• CE Certification – Available upon request

This ensures smooth approval for international tenders and utility projects.

Engineering & Project Support

We support customers throughout the entire project lifecycle:

• Technical drawings and layout design

• Specification confirmation and optimization

• Tender documentation support

• Factory testing and inspection coordination

• Export packaging and logistics assistance

Our engineering-driven approach ensures every solution meets both technical and commercial requirements.

Get Your Project Solution Today

Looking for a 10kV–35kV outdoor prefabricated substation for your next project?
Our team is ready to provide technical drawings, quotations and tender support.

👉 Send us your project requirements now and get a professional solution tailored to your needs.

FAQ

Q1. What is an outdoor prefabricated substation?
An outdoor prefabricated substation is a factory-built power distribution unit integrating MV switchgear, transformer, LV switchgear, protection and control systems, delivered as a turnkey solution for fast on-site installation.

Q2. What is the difference between a prefabricated substation and a compact substation?
In most projects, prefabricated substation and compact substation refer to the same concept. The term “prefabricated substation” is more common in EPC and utility tenders, while “compact substation” is widely used in industrial and commercial applications.

Q3. What voltage levels are available for prefabricated substations?
Outdoor prefabricated substations are typically available for 10kV, 20kV and 35kV medium-voltage systems, with transformer capacities up to 10000 kVA.

Q4. Which standards are required for outdoor prefabricated substations?
Most projects require compliance with IEC 62271, IEC 60076, IEC 61439, along with CE and ISO certifications depending on the target market.
