What Is An On-Load Tap-Changing Transformer?

05-12 2025 | By:

In modern power systems, voltage stability and reliability are crucial. In order to ensure the safe transmission and effective use of electricity, the on-load tap changer transformer (On-load Tap Changer Transformer) came into being. It is a special type of transformer that can automatically or manually adjust the output voltage when the load is running to adapt to different load requirements and grid conditions. This article will discuss in detail the working principle, main composition, application field and advantages of the on-load tap changer transformer.
1. Working principle of on-load tap changer transformer The core function of the on-load tap changer transformer is to regulate voltage. Its working principle is based on the basic principle of the transformer, and the voltage regulation is achieved by changing the tap position of the transformer. The voltage ratio between the primary winding and the secondary winding of the transformer is determined by the tap position. When the load changes, the transformer will automatically adjust the tap according to the actual needs of the power grid to maintain the stability of the output voltage. The on-load tap changer transformer is usually equipped with a voltage regulating device that can be adjusted when the load is running. This adjustment method is different from the off-load tap changer transformer (Off-load Tap Changer Transformer), which can only be adjusted when the transformer is powered off. Through the on-load voltage-changing transformer, the power system can maintain voltage stability under different load conditions and avoid equipment damage and power outages caused by voltage fluctuations.

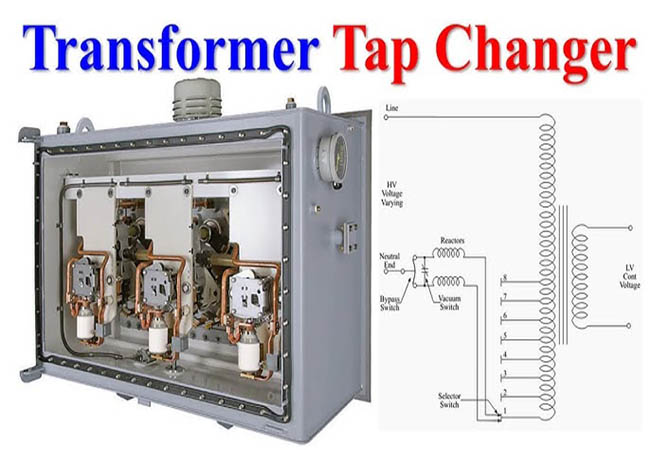

What Is An On-Load Tap-Changing Transformer?

2. The main components of the on-load voltage-changing transformer The on-load voltage-changing transformer is mainly composed of the following parts:
1. Transformer body: including iron core, winding and insulation material. The iron core is used to guide magnetic flux, and the winding is used to transmit electrical energy.
2. Voltage regulating device: This is the core part of the on-load voltage-changing transformer, usually composed of multiple taps, switches and control systems. The voltage regulating device can monitor the output voltage in real time and automatically adjust the tap position according to the set value.
3. Control system: Modern on-load voltage-changing transformers are usually equipped with intelligent control systems, which can automatically adjust the voltage by monitoring the real-time data of the power grid to ensure the stability of the power grid.

4. Protection device: including overload protection, short-circuit protection and overvoltage protection, etc., to ensure that the transformer can operate safely under abnormal conditions.
3. Application fields of on-load voltage-regulating transformers On-load voltage-regulating transformers are widely used in various fields of power systems, especially in the following aspects:
1. Power transmission: In long-distance power transmission, the voltage may fluctuate significantly due to the influence of line impedance. On-load voltage-regulating transformers can effectively adjust the voltage to ensure the stability of power during transmission.
2. Distribution system: In urban or industrial distribution networks, on-load voltage-regulating transformers can automatically adjust the voltage according to changes in load to ensure the normal operation of user equipment.
3. Renewable energy: With the continuous development of renewable energy, such as wind and solar energy, the load changes of the power grid are more frequent. On-load voltage-regulating transformers can quickly respond to changes in the power grid and ensure a stable supply of electricity.
4. Advantages of on-load voltage-regulating transformers On-load voltage-regulating transformers have the following obvious advantages over traditional off-load voltage-regulating transformers:
1. Real-time adjustment: On-load voltage-regulating transformers can adjust the voltage in real time when the load is running to avoid equipment damage caused by voltage fluctuations.
2. Improve power supply reliability: By automatically adjusting the voltage, the on-load voltage-changing transformer can improve the power supply reliability of the power system and reduce the occurrence of power outages.
3. Strong adaptability: Whether it is an urban distribution network or industrial power, the on-load voltage-changing transformer can be adjusted according to actual needs to adapt to different grid conditions.

4. Energy saving and consumption reduction: By optimizing the voltage, the on-load voltage-changing transformer can reduce power loss and improve the overall efficiency of the power system. On-load voltage-changing transformers play an important role in modern power systems. It not only improves the stability and reliability of electricity, but also provides a guarantee for the efficient use of electricity.
With the continuous increase in electricity demand and the increase in the complexity of the power grid, the application of on-load voltage-changing transformers will become more and more extensive and become an indispensable part of the power industry. Through a deep understanding of on-load voltage-changing transformers, we can better understand the complexity of the power system and its importance to modern society. In the future, with the continuous advancement of science and technology, the technology of on-load voltage-changing transformers will continue to develop, providing stronger support for the safe and efficient operation of the power system.
