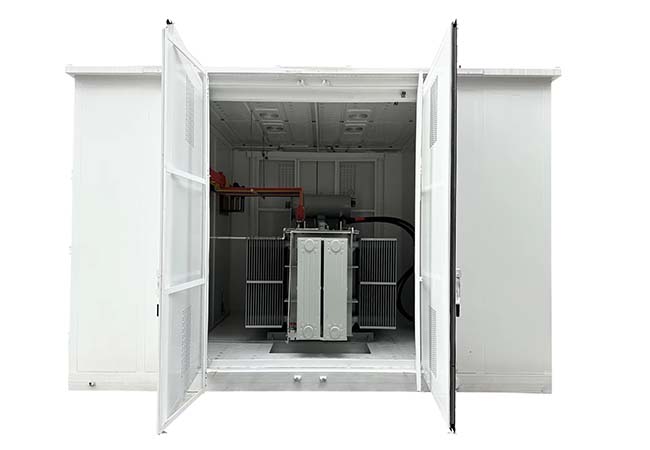

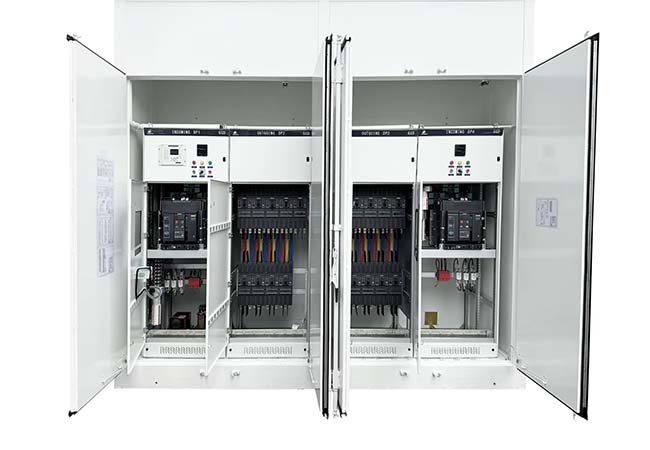

Outdoor Compact substation consists of high voltage switchgear, transformer and low voltage power distribution device to connecttogether , Compact substation is divided into threefunctional compartments (high voltage compartment, transformer compartment andlow-voltage compartment), high and low voltage compartment functions completely. High voltage side of primary with many powersupply methods, also can be fitted with the high-voltage measurementcomponents to meet the high voltage measurement requirement.. The transformer compartment can choose low loss of oil immersedtransformer and dry-type transformer; the transformer compartment is provided with ONAN system and lighting system, low voltage compartment adopts fix type structure or assembled Type structures to consist of usersrequired power supply scheme , such as power distribution, lighting power distribution, reactive power compensation ,electricenergy metering and electric quantity measurement, multiple functions to meet the different requirements of users, and to3convenient for users to manage the power supply and improve the quality of power supply The structure of high voltage compartment is compact and reasonable, and has a comprehensive anti misoperation interlockingfunction. The transformer under the condition of user requirements, can be provided with a guide rail for convenient to get in andout from the two sides door on transformer room . Each room has installed automatic lighting device, in addition , to high and lowvoltage compartment used all elements of reliable performance, convenient operation and to make the products running safety andreliable, convenient operation and maintenance.
Adopting natural ventilation and forced ventilation in two methods to make ventilation and cooling are good. The transformercompartment and the low voltage compartment are provided with ventilation channel. The exhaust fan is provided with a temperaturecontrol device, which is automatically start and close to ensure transformer in full load operation
The container body structure adopts channel steel and angle steel manufacturing, with strong mechanical strength, the enclosure ismade of Aluminum Alloy insulation composite plate, stainless steel plate or non metal material manufacturing, surface smoothly,elegant appearance, and has good insulation effect and strong corrosion resistance. The rooms are provided partitions to separateinto independent chambers ,the small chamber fitted lighting device, through a door to control switch. The top of the transformer room provided with an exhaust fan, automatically
control transformer temperature, increasing air convection to reduces room temperature. The connection part of substation can rotate ,which used with rubber seal with strong moisture resistant ability. Our company has a full set of and by the provincial Identification of drawing materials ,alsp are all computerized and store in computer. If it is standard scheme, we can be
efficient, high quality and complete the design task by simply invoke approved documents. If it is non- standard, we can according to user requirements and strictly accordance with ISO9001 quality system requirements,to design CAD drawings with user requirements This equipment as an important power supply unit of cable distribution network, setting high voltage control, protection,substation, power distribution device in the completely prefabricated product for 50Hz three-phase AC transformer at rated capacity to 6000KVA., It is widely used in the main house district, factories, hotels, hospitals, parks, airports, docks, oil. railway and temporary facilities and outdoor power supply place.
