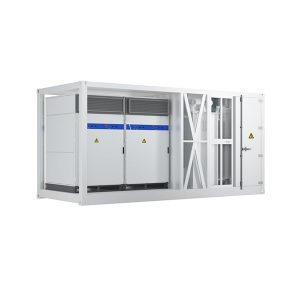

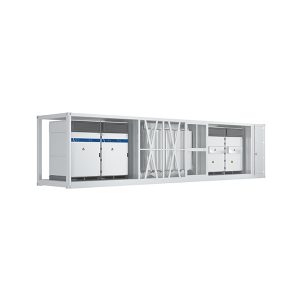

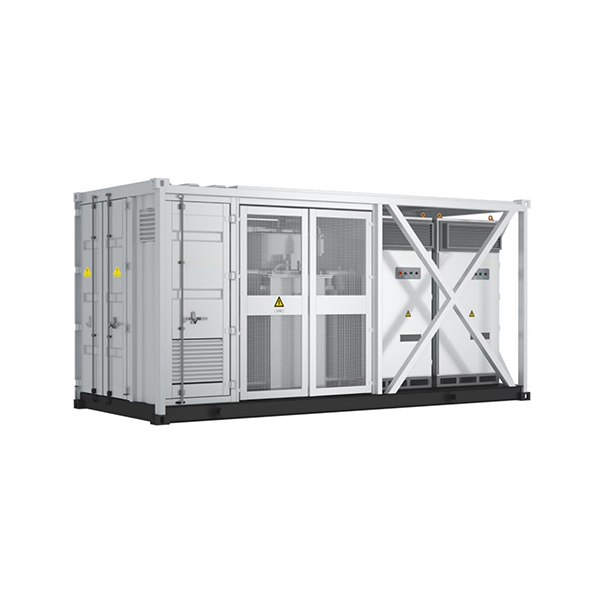

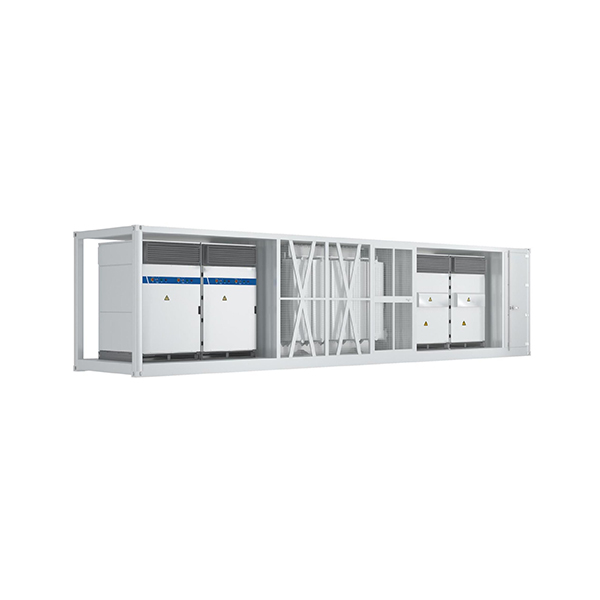

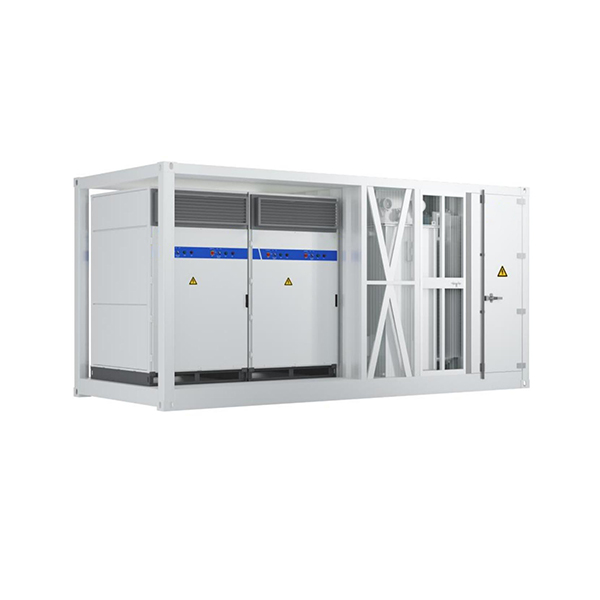

ESS PCS Boost Integrated Machine
| Rated voltage | 12/24/36kv |
|---|---|
| Rated capacity | 500kw-10mw |
| Rated voltage | 12/24/36kv |
|---|---|
| Rated capacity | 500kw-10mw |
Full four-quadrant operation, equipped with a bidirectional power conversion system
Adopts advanced three-stage technology with high conversion efficiency
Compress the construction cycle through factory-integrated solutions
Reduce installation, on-site labor and transportation costs
Full-service managed solutions supporting online analysis and rapid troubleshooting
Convenient modular design allows easy access to all components during maintenance
| MV SKID GENERAL | |
| Transformer | |
| Rated Power (kVA) | 500-10000 |
| Transformer Model | Oil type |
| Transformer Vector | Dy11 |
| Protection Level | IP54 / IP55 |
| Anti-corrosion Grade | C4-H / C4-VH / C5-M / C5-H / C5-VH |
| Cooling Method | ONAN / ONAF |
| Temperature Rise | 60K（Top Oil） 65K（Winding） @40℃ |
| Oil Retention Tank | None / Galvanized steel |
| Winding Material | Aluminum / Copper |
| Transformer Oil | 25# /45# mineral oil / Natural ester insulation oil |
| Transformer Efficiency | IEC standard / IEC Tier-2 |
| MV Operating Voltage Range (kV) | 11~33±5% |
| Nominal Frequency (Hz) | 50 / 60 |
| Altitude (m) | Optional |
| Switchgear | |
| Switchgear Type | Ring Main Unit, CCV |
| Rated voltage (kV) | 12/24/36 |
| Insulating medium | SF6 |
| Rated frequency (Hz) | 50/60 |
| Enclosure protection degree | IP3X |
| Gas tank protection degree | IP67 |
| Gas leakage rate per year | ≤0.1% |
| Rated Operating Current (A) | 630 |
| Switchgear Short Circuit Rating (kA/s) | 20kA/3s / 25kA/3s |
| Switchgear IAC (kA/s) | A FL 20kA 1S |
| PCS * 4 | |
| DC Input Voltage Range (V) | 1050～1500 |
| Max. DC input Current (A) | 1833 |
| DC Voltage Ripple | < 1% |
| DC Current Ripple | < 3% |
| LV Nominal Operating Voltage (V) | 690 |
| LV Operating Voltage Range (V) | 621～759 |
| PCS Efficiency | 98.5% |
| Max. AC Output Current (A) | 1588 |
| Total Harmonic Distortion Rate | < 3% |
| Reactive Power Compensation | Four quadrant operation |
| Nominal Output Power (kVA) | 1750 |
| Max. AC Power (kVA) | 1897 |
| Power Factor Range | >0.99 |
| Nominal Frequency (Hz) | 50 / 60 |
| Operating Frequency (Hz) | 45~55 / 55~65 |
| Connection Phases | Three-phase-three-wire |
| Communication Interface | |
| Communication Method | CAN / RS485 / RJ45 / Optical fiber |
| Supported Protocol | CAN / Modbus / IEC60870-103 / IEC61850 |
| Ethernet Switch Qty | One for standard |
| UPS | 1kVA for 15min / 1h / 2h |
| Skid General | |
| Dimensions (W*H*D)(mm) | 12192*2896*2438 (40ft) |
| Weight (kg) | # |
| Protection Level | IP54 |
| Operating Temperature (℃) | -35~60C, >45C derating |
| Storage Temperature (℃) | -40~70 |
| Maximum Altitude (above sea level) (m) | 5000, ≥3000 derating |
| Environment Humidity | 0~ 100% , No condensation |
| Type of Ventilation | Nature air cooling / Forced air cooling |
| Auxiliary Power Consumption (kVA) | 21.4 (peak) |
| Auxiliary Transformer (kVA) | Without / With |
