Box type substation Integrated Energy Storage Converter Booster Machine (Cabin) 380V Output Voltage 10KV-15KV Three Functional Storage Transformer(European Type)

Integrated Energy Storage Converter Booster Machine (Cabin) 380V Output Voltage 10KV-15KV Three Functional Storage Transformer(European Type)

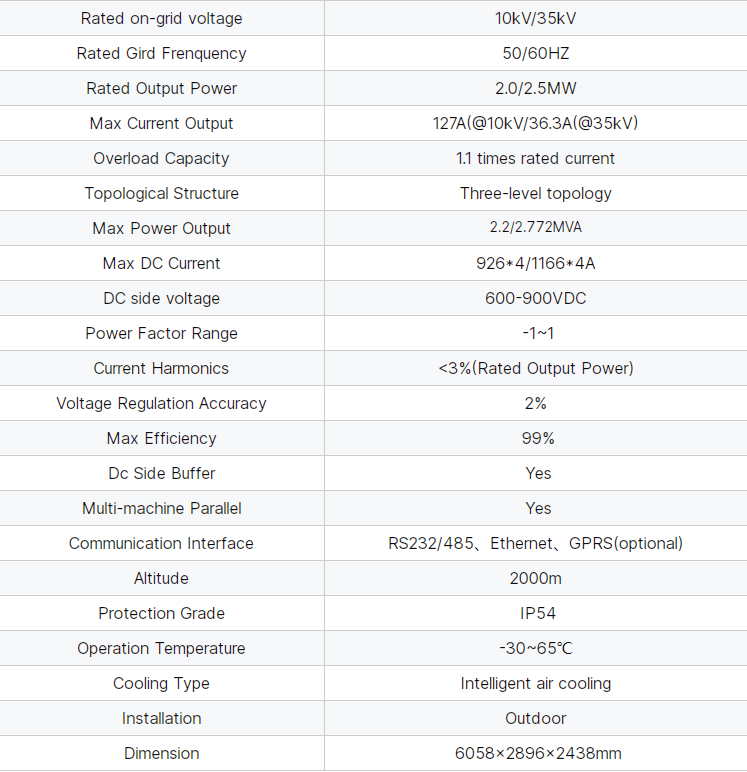

Rated voltage	10kV/35kV
Rated capacity	2.0/2.5MW

Integrated Cabin For Energy Storage Converter & Booster(European Type)

Overview

ZTELEC independently developed three-level medium-voltage high-power energy storage converter, switchgear, and step-up transformer all in one machine have been optimized for integration, with features as below : a single set of equipment with higher power, simple application, flexible site selection, and convenient maintenance. The system can be directly connected to the 10/35kV high-voltage grid, reducing the complex high-voltage system design work and shortening the system design cycle, while lowering the system design cost.

Customized Solution

Specification: 10kV~35kV.

The appearance can be customized according to user needs.

Quality Guarantee:

3 years warranty commitment, reliable and safe products;

Simplify installation works;

Easy to maintain.

Integrated Energy Storage Converter Booster Machine (Cabin) 380V Output Voltage 10KV-15KV Three Functional Storage Transformer

Features

“Converter “+” step-up” integrated design to achieve integrated product delivery;
Highly integrated, reasonable and efficient layout to improve space utilization
Secondary loop integration, unified measurement, protection and communication;
Flexible configuration, support multi-machine parallel, PQ,VF and other functions;
1500V system wide DC voltage range, flexible DC side configuration;
Power Peak cutting and valley filling, power peak&frequency regulation, auxiliary new energy grid connection and other applications;
