Prefabricated Electrical House for Renewable Energy & BESS Projects
06-12 2026 | By:
E-House Substation Manufacturer | Modular & Containerized Power Solutions Up to 35kV

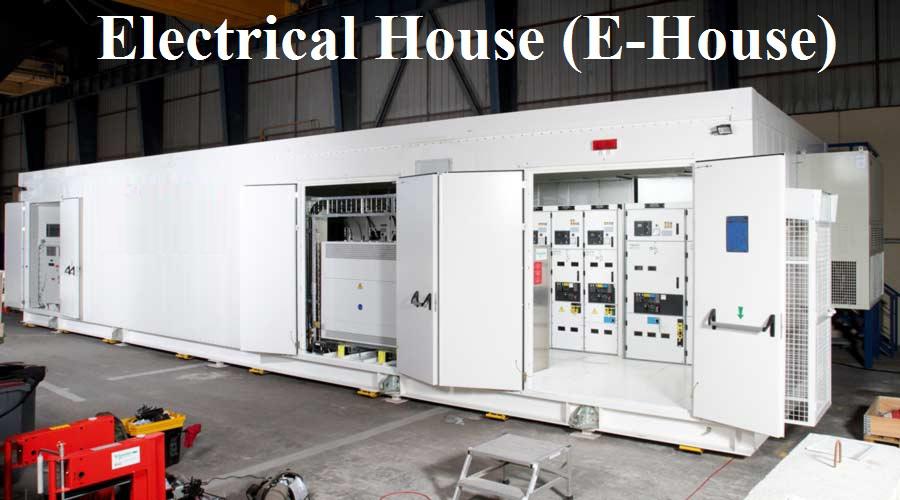

What Is an E-House Substation?
An E-House (Electrical House) is a prefabricated, factory-built, modular power distribution building that integrates medium-voltage switchgear, low-voltage switchgear, transformers, protection relays, SCADA systems, UPS units, HVAC systems, and auxiliary equipment into a single transportable structure.
Compared with conventional substations, E-House substations significantly reduce engineering work, construction time, and installation costs while improving safety, reliability, and project delivery speed.
Today, E-House solutions are widely used in:
Utility substations
Renewable energy projects
Solar power plants
Battery Energy Storage Systems (BESS)
Mining operations
Oil & Gas facilities
Data centers
Industrial manufacturing plants
Transportation infrastructure
Temporary and emergency power systems
As global demand for rapid power infrastructure deployment grows, containerized and modular substations have become the preferred choice for EPC contractors, utilities, and industrial operators.
Why Choose an E-House Instead of a Traditional Substation?
Faster Deployment
Traditional substations often require:
Civil engineering
Concrete foundations
Equipment installation
On-site wiring
Extensive commissioning
Project timelines can extend from 12 to 24 months.
An E-House substation is assembled, wired, tested, and commissioned in the factory before shipment.
Benefits include:
✓ Up to 70% faster deployment
✓ Reduced construction schedules
✓ Earlier project energization
✓ Lower labor costs
Reduced Project Costs
Containerized substations eliminate many expenses associated with conventional construction:
Building structures
On-site assembly
Temporary facilities
Extended labor requirements
Multiple contractor coordination
Typical cost reductions range between 15% and 40%.
Factory-Tested Reliability
Every E-House is fully tested before shipment, including:
Functional testing
Protection relay testing
SCADA integration testing
FAT (Factory Acceptance Test)
Insulation resistance testing
High-voltage testing
This minimizes commissioning risks on site.
Enhanced Safety
Modern E-House systems feature:
Arc-resistant switchgear
Fire detection systems
Fire suppression systems
Emergency lighting
Access control systems
Intrusion alarms
Environmental monitoring
Ensuring personnel and equipment safety.

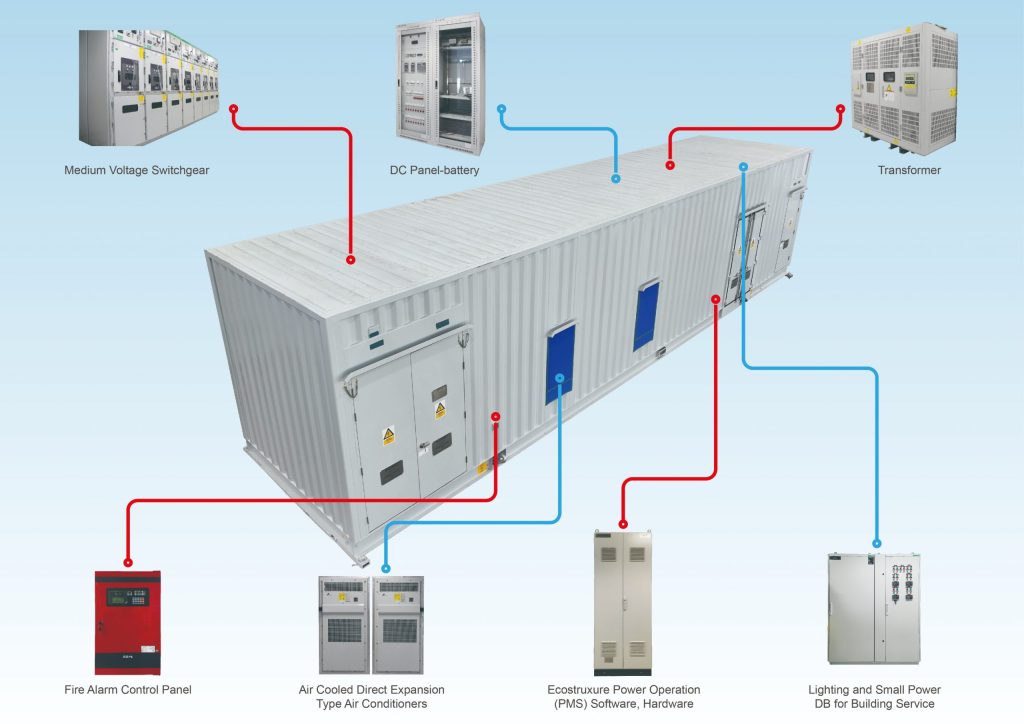

Main Components of an E-House Substation
Medium Voltage Switchgear
Voltage levels include:
3.3kV
6.6kV
10kV
11kV
13.8kV
15kV
20kV
24kV
33kV
35kV
Available technologies:
AIS Switchgear
GIS Switchgear
Vacuum Circuit Breakers
SF6 Circuit Breakers
Power Transformers
Transformer options include:
Oil-Immersed Transformers
ONAN
ONAF
KNAN
Dry-Type Transformers
Cast Resin
VPI
VPE
Capacity range:
100kVA – 50MVA+
Low Voltage Switchboards
Applications:
Motor control
Auxiliary power
Plant distribution
Lighting systems
Standards:
IEC 61439
UL 891
Protection & Control Systems
Integrated solutions include:
Protection relays
RTU
PLC
SCADA
HMI
Energy management systems
Compatible with:
ABB
Schneider Electric
Siemens
GE
Eaton
SEL
HVAC Systems
Temperature control is critical for reliable equipment operation.
Typical systems include:
Industrial air conditioners
Ventilation fans
Pressurization systems
Dust filtration systems
Suitable for:
Desert environments
Tropical climates
Mining conditions
Types of E-House Solutions
Containerized Substation
Built using ISO shipping containers.
Advantages:
Easy transportation
Quick installation
Compact footprint
Applications:
Mining
Temporary power
Renewable energy
Modular Substation
Constructed using multiple transportable modules.
Advantages:
Larger capacities
Flexible configurations
Future expansion capability
Applications:
Utilities
Industrial facilities
Large infrastructure projects
Mobile Substation
Mounted on:
Trailer
Skid
Truck chassis
Benefits:
Emergency response
Disaster recovery
Temporary power supply
Applications:
Utility maintenance
Grid support
Construction sites
Voltage Levels and Technical Specifications
Parameter Range
Rated Voltage 3.3kV – 35kV
Transformer Capacity 100kVA – 50MVA
Frequency 50Hz / 60Hz
Protection Degree IP54 / IP55 / IP65
Cooling Method HVAC / Forced Ventilation
Standards IEC / ANSI / IEEE
Short Circuit Rating Up to 50kA
Altitude Up to 5000m
Ambient Temperature -40°C to +55°C
Applications of E-House Substations
Solar Power Plants
Integrated systems include:
MV switchgear
Step-up transformers
Protection systems
SCADA
Benefits:
Faster commissioning
Reduced field work
Lower EPC costs
Battery Energy Storage Systems (BESS)
Modern BESS projects require:
PCS transformers
MV switchgear
Protection relays
Energy management systems
E-House solutions provide plug-and-play deployment.
Mining Industry
Mining projects often operate in remote areas.
Advantages include:
Fast transportation
Rugged construction
Dust protection
Extreme temperature resistance
Oil & Gas
E-Houses can be engineered for:
Offshore platforms
Refineries
LNG facilities
Petrochemical plants
Optional certifications:
IECEx
ATEX
Data Centers
Critical features include:
Redundant power supply
UPS integration
High reliability
Remote monitoring
International Standards
Our E-House substations are designed according to:
IEC Standards
IEC 62271
IEC 60076
IEC 61439
IEC 60529
IEC 60255
IEEE Standards
IEEE C37 Series
IEEE 693
IEEE 519
ANSI Standards
ANSI C57
ANSI C37
Additional Certifications
CE
ISO 9001
ISO 14001
ISO 45001
Why Choose ZTELEC Yuguang as Your E-House Manufacturer?
Turnkey Engineering
We provide:
Design
Manufacturing
Integration
FAT testing
Transportation support
Installation guidance
Commissioning support
Flexible Customization
Available options:
Single-module E-House
Multi-module E-House
Walk-in E-House
Containerized substations
Mobile substations
High-Quality Components
Optional brands:
ABB
Schneider Electric
Siemens
Eaton
GE
SEL
Global Project Experience
Applications across:
Middle East
Africa
Southeast Asia
Central Asia
South America
Fast Delivery
Factory-built modular construction reduces delivery time significantly compared with conventional substations.
Frequently Asked Questions (FAQ)
What is the difference between an E-House and a traditional substation?
An E-House is factory-built, transportable, and fully integrated, while traditional substations require extensive on-site construction and installation.
What voltage levels are available?
Typically from 3.3kV to 35kV, with customized solutions available for higher voltages.
Can the E-House be expanded later?
Yes. Modular designs allow future expansion with additional sections or equipment.
Are E-Houses suitable for desert environments?
Yes. Special HVAC, insulation, and filtration systems are available for high-temperature and dusty environments.
What standards do you comply with?
IEC, ANSI, IEEE, CE, ISO, and customer-specific utility requirements.
Request a Quote for Your E-House Project
Looking for a reliable E-House manufacturer, containerized substation supplier, or modular substation partner?
ZTELEC Yuguang provides customized E-House solutions up to 35kV for utilities, renewable energy, mining, oil & gas, industrial facilities, and infrastructure projects worldwide.
Contact our engineering team today for:
Technical consultation
Single-line diagram review
Budget quotation
EPC project support
OEM/ODM manufacturing
Factory acceptance testing (FAT)
