ZTelec Power Transformer Factory | Leading 35kV Power Equipment Manufacturer
ZTelec Power Transformer Factory is a professional Chinese manufacturer specializing in the R&D and production of power transformers and electrical equipment. With over 20 years of experience, we supply dry-type transformers, oil-immersed transformers, phase-shifting rectifier transformers, high and low voltage switchgear, and box-type substations with voltage levels up to 35kV.
Our factory is equipped with advanced production lines and strict testing systems to ensure high efficiency, low loss, and long service life. Products comply with international standards such as IEC60076, GB/T1094, and ANSI.
Dry-Type Transformer
Medium Voltage Dry Type Transformers
800kVA Dry-Type Transformers

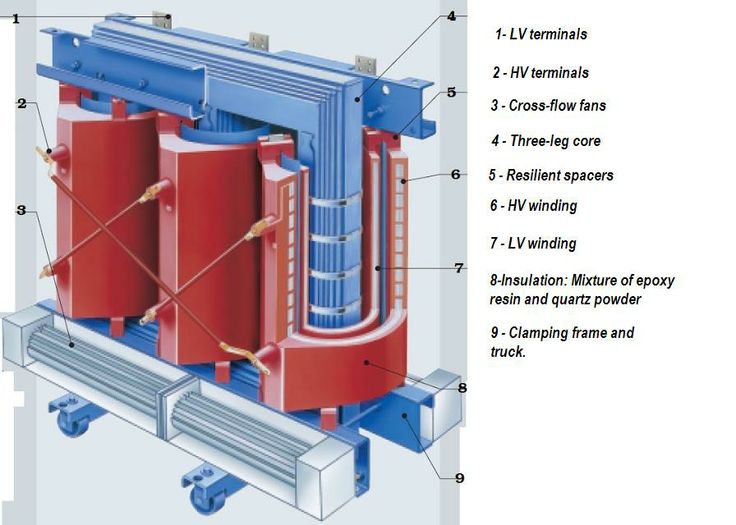

Dry-type transformers are ideal for indoor applications requiring fire resistance and environmental protection. They feature epoxy resin insulation, high reliability, and minimal maintenance.
| Model | Rated Capacity (kVA) | Voltage Level | Cooling Method | Application |
|---|---|---|---|---|
| SCB10 | 100 – 2500 | 6–35kV | AN / AF | Commercial buildings, hospitals, tunnels |
| SCB11 | 100 – 2500 | 10–35kV | AN / AF | Renewable energy, data centers |
| SG Series | 30 – 1600 | ≤10kV | AN | Industrial workshops, marine power |
Key Features: Excellent insulation, low noise, moisture resistance, and long lifespan.
Oil-Immersed Transformer
Three-phase Outdoor 10KV 2.5mva Oil Immersed Converter Distribution Transformer
oil-immersed type transformer

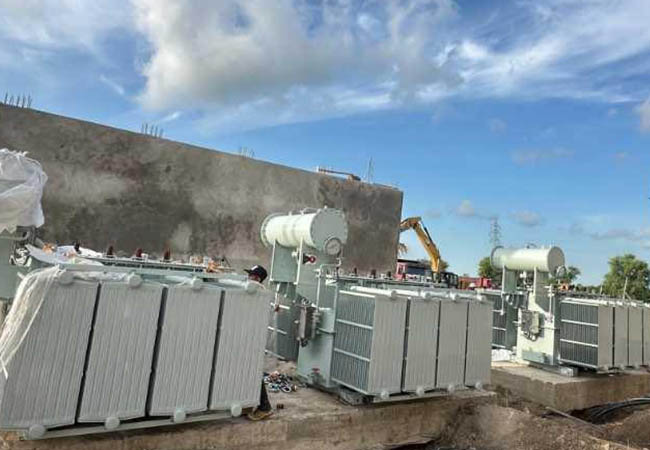

Oil-immersed transformers are suitable for outdoor use and heavy load conditions. The oil acts as insulation and cooling medium, ensuring stable performance and high efficiency.
| Model | Rated Capacity (kVA) | Voltage Ratio | Cooling Method | Application |
|---|---|---|---|---|
| S11 | 30 – 31500 | 6/0.4kV, 10/0.4kV | ONAN | Distribution networks |
| S13 | 100 – 6300 | 10/0.4kV | ONAN / ONAF | Industrial power supply systems |
| SH15 | 100 – 2500 | 10/0.4kV | ONAN | Renewable energy, rural power grid |
Advantages: High efficiency, low loss, quiet operation, optional hermetic sealing.
Phase-Shifting Rectifier Transformer
Used in DC power systems such as electrolysis, steel mills, and drives. Designed to reduce harmonics and improve rectification efficiency.
| Model | Rated Capacity (kVA) | Phase Shift | Voltage Class | Application |
|---|---|---|---|---|
| ZT(P)SFG(H) | 160 – 12000 | 6 / 12 / 24 pulses | Up to 35kV | Electroplating, metallurgy, DC drive systems |
Highlights: Custom vector groups, strong overload capacity, harmonic suppression.
High and Low Voltage Switchgear
Low Voltage Switchgear Manufacturers

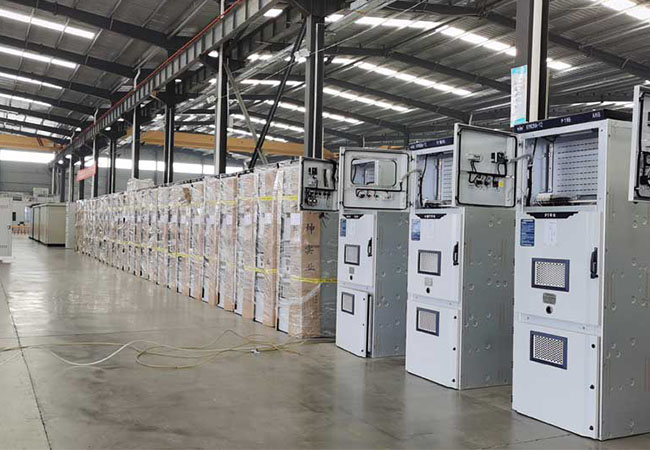

ZTelec provides a complete range of HV and LV switchgear cabinets for power distribution, automation, and protection systems.
| Model | Voltage Range | Type | Application |
|---|---|---|---|

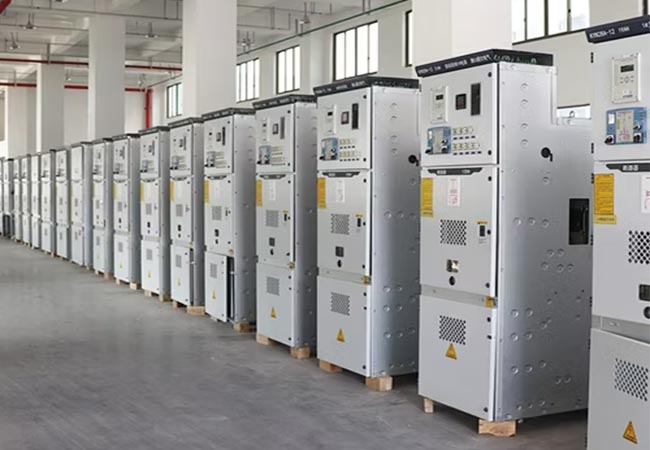

| KYN28A-12 | 3.6–12kV | Metal-clad switchgear | Power stations and substations |
| GGD / GCS / MNS | 0.4kV | Low-voltage distribution | Factories, workshops, data centers |
| HXGN15 | 12kV | Ring Main Unit (RMU) | Urban power distribution |
Box-Type Substation (Compact Substation)
Box-type substations integrate transformers, switchgear, and protection devices in one enclosure. Ideal for urban grids, renewable energy, and industrial applications.
| Type | Voltage Level | Capacity (kVA) | Application |
|---|---|---|---|
| YB□-12 | ≤12kV | 100–1600 | Urban residential areas |
| YB□-24 | ≤24kV | 200–2500 | Wind and solar power plants |
| YB□-35 | ≤35kV | 500–3150 | Industrial and mining enterprises |
Benefits: Compact design, easy installation, safe operation, and long service life.
Contact Us
ZTelec – Power Transformer Factory
📍 Zhengzhou, China
🌐 Website:www.hnztelec.com
📧 Email: info@ztelecgroup.com
💬 Contact us today for customized transformer solutions up to 35kV.
