5 MVA 13.2/6.6 kV Packaged Substation for Mining in Chile

05-08 2026 | By:

5 MVA 13.2/6.6 kV Mining Power Substation in Chile

Project Location: Chile
Application: Mining
Project Year: 2026
Installation: Outdoor
Solution: Packaged Power Substation

Project Overview

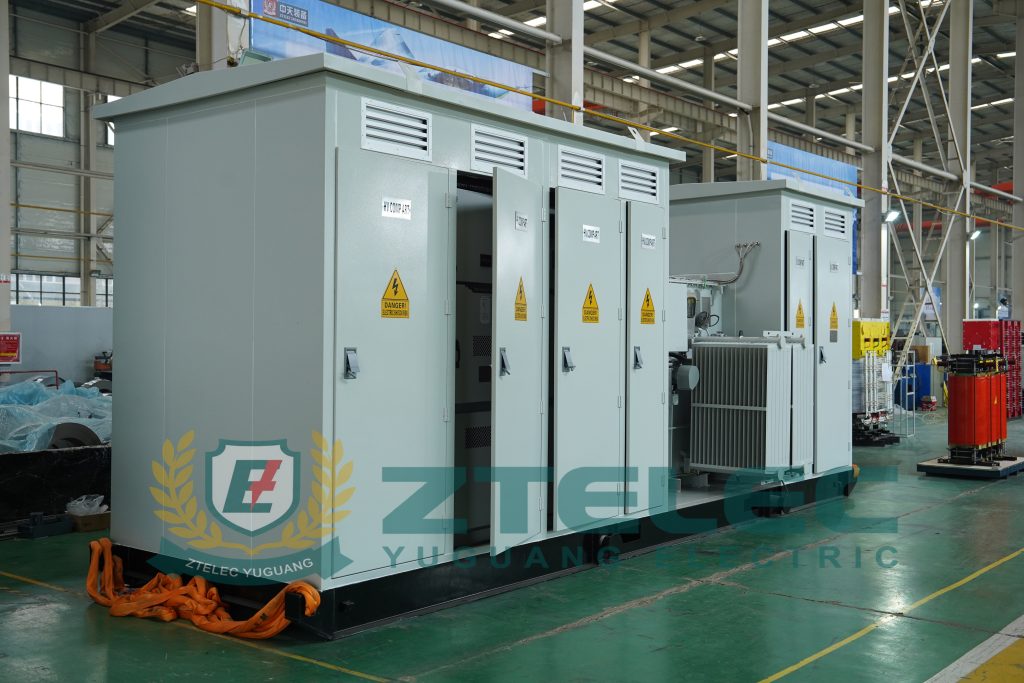

For a mining project in Chile, ZTelec Yuguang supplied a 5 MVA (5000 kVA) oil-immersed transformer-based outdoor packaged substation.

The system is designed to receive 13.2 kV medium-voltage power and transform it to 6.6 kV for downstream mining equipment and industrial loads.

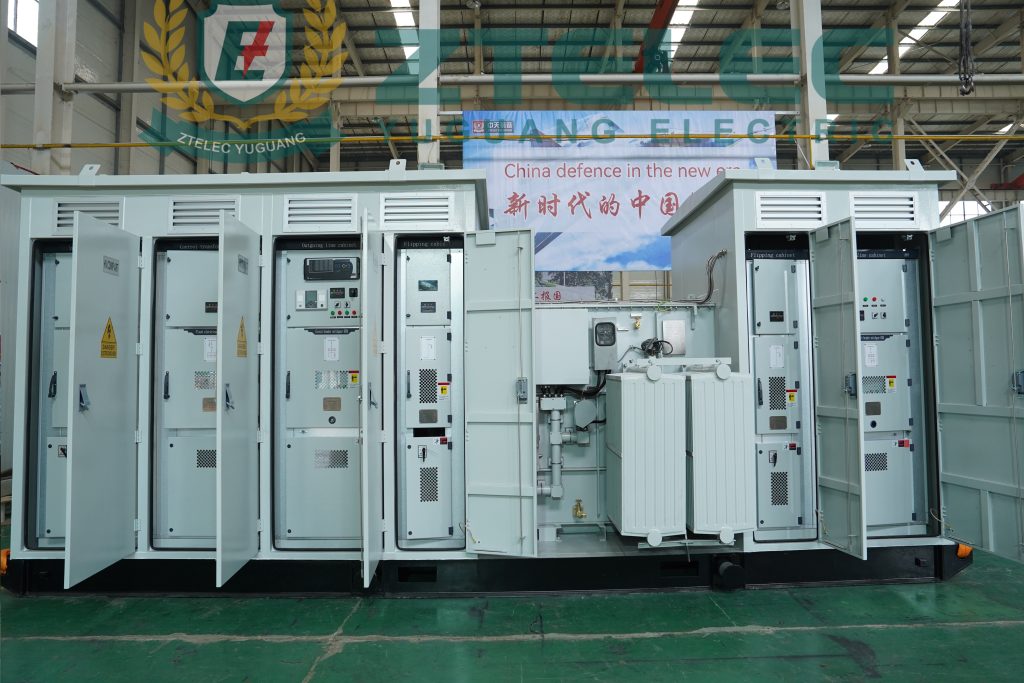

The packaged configuration integrates the main electrical equipment into a compact outdoor power supply system, reducing installation complexity and providing reliable power distribution for demanding mining environments.

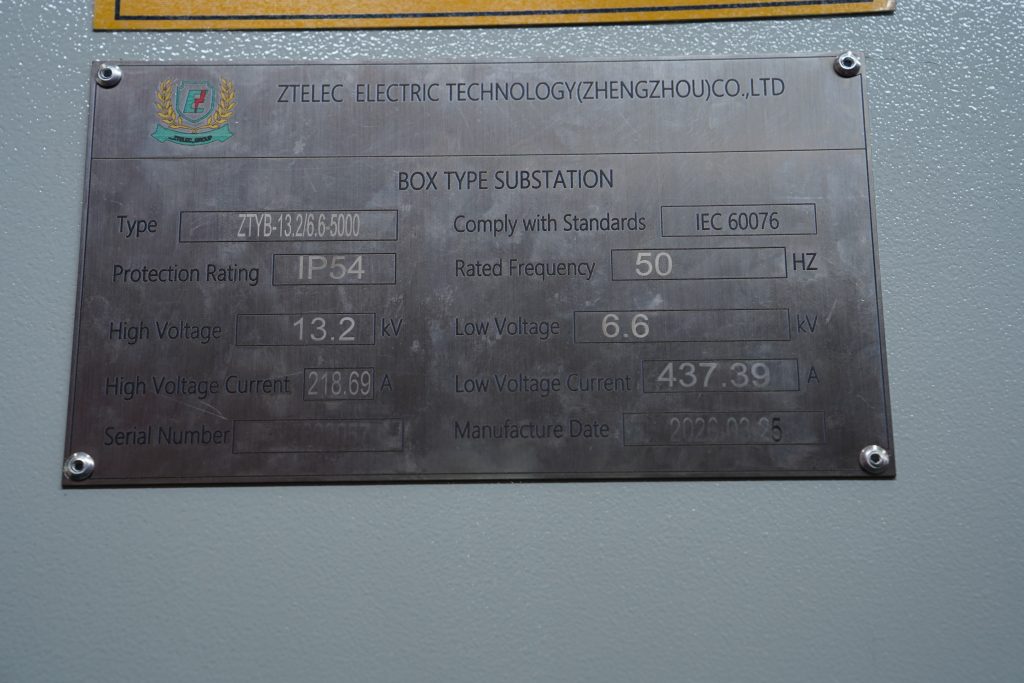

Main Technical Parameters

Solution

13.2 kV Incoming Power → MV Switchgear → 5000 kVA Transformer → 6.6 kV Switchgear → Mining Loads

The solution focuses on reliable voltage transformation, outdoor protection, thermal performance and convenient maintenance. Depending on the final project specification, the substation can be equipped with protection relays, metering, monitoring, grounding and auxiliary systems.

Project Benefits

• 5 MVA capacity for large mining loads
• 13.2/6.6 kV voltage transformation
• Outdoor packaged configuration
• Suitable for heavy industrial and mining applications
• Integrated transformer and switchgear solution
• Simplified transportation and site installation

ZTelec Yuguang

ZTelec Yuguang provides oil-immersed transformers, medium-voltage switchgear and packaged substations for mining, industrial and utility projects.

For Chile and other international markets, equipment can be customized according to the project’s single-line diagram, voltage level, load requirements and applicable standards.

Keywords: 5 MVA transformer, 5000 kVA transformer, 13.2/6.6 kV transformer, mining power substation, outdoor packaged substation, Chile mining transformer.
