As a leading source factory, ZTELEC Yuguang Electric Technology (Henan) Co., Ltd. specializes in manufacturing high-quality power distribution equipment, including the American Outdoor Box Type Power Distribution Transformer Substation. With a commitment to global supply, the company delivers reliable solutions to clients across diverse industries, ensuring seamless power distribution in outdoor environments.

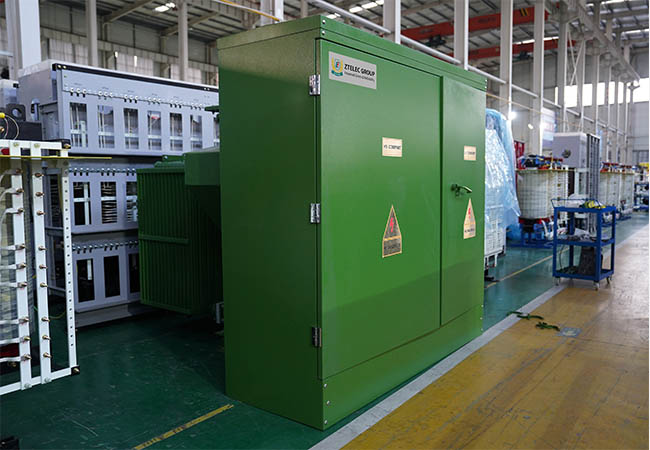

The American Outdoor Box Type Power Distribution Transformer Substation combines robust design with advanced functionality, making it ideal for urban power grids, residential areas, and industrial parks. Its compact structure integrates transformers, high-voltage switchgear, and low-voltage distribution systems within a weather-resistant enclosure, ensuring safe operation and minimal maintenance even in harsh outdoor conditions. The substation features quick installation capabilities, reducing construction time and costs while maximizing operational efficiency.

Engineered with precision, the substation adheres to international standards, offering superior protection against environmental factors like rain, dust, and temperature fluctuations. The high-voltage section is equipped with load-break switches and fuses for reliable short-circuit protection, while the low-voltage section includes circuit breakers and busbars to manage power distribution effectively. This design ensures stable power supply and enhances the overall reliability of the electrical system.

ZTELEC Yuguang’s expertise as a source factory enables comprehensive customization, allowing clients to tailor the substation’s specifications to meet project-specific requirements. From voltage ratings to enclosure materials and additional features, the company provides flexible solutions that align with global power distribution needs.

Below is a detailed table outlining the model parameters and specifications of the American Outdoor Box Type Power Distribution Transformer Substation:

Parameter	Model ZT – ABTS – 50	Model ZT – ABTS – 200	Model ZT – ABTS – 500	Model ZT – ABTS – 1000
Rated Capacity	50 kVA	200 kVA	500 kVA	1000 kVA
High Voltage Rating	10 kV / 12 kV	10 kV / 12 kV	10 kV / 12 kV	10 kV / 12 kV
Low Voltage Rating	0.4 kV (400 V)	0.4 kV (400 V)	0.4 kV (400 V)	0.4 kV (400 V)
Transformer Type	Oil – immersed	Oil – immersed	Oil – immersed	Oil – immersed
Cooling Method	ONAN (Natural Cooling)	ONAN	ONAN	ONAN
Enclosure Material	Galvanized Steel	Galvanized Steel	Galvanized Steel	Galvanized Steel
Protection Level	IP54	IP54	IP54	IP54
Ambient Temperature Range	-30°C to +40°C	-30°C to +40°C	-30°C to +40°C	-30°C to +40°C
Dimensions (L×W×H, mm)	1200×800×1400	1600×1000×1600	2000×1200×1800	2400×1400×2000
Weight (Approx.)	800 kg	1500 kg	2800 kg	4500 kg
High Voltage Switchgear	Load – break Switch	Load – break Switch	Load – break Switch	Load – break Switch
Low Voltage Distribution	Circuit Breakers	Circuit Breakers	Circuit Breakers	Circuit Breakers
Noise Level (at 1m)	≤55 dB	≤58 dB	≤60 dB	≤62 dB
Certification	IEC, ANSI	IEC, ANSI	IEC, ANSI	IEC, ANSI

ZTELEC Yuguang Electric Technology (Henan) Co., Ltd. ensures each American Outdoor Box Type Power Distribution Transformer Substation undergoes rigorous testing to meet international quality standards. The company’s global supply chain enables efficient delivery to markets worldwide, supported by professional technical services and after – sales support.

For projects requiring reliable outdoor power distribution solutions, ZTELEC Yuguang’s expertise as a source factory guarantees customized, high – performance substation systems. If you need detailed technical documentation, customization options, or pricing information, please contact us for further assistance.
