6600kVA Containerised Substation

Rated voltage	20±2×2.5%/0.8-0.8 kV
Rated capacity	6600kVA
Application scenarios	solar power plants, wind farms, industrial facilities, mining operations, utilities, and infrastructure projects

Rated voltage

20±2×2.5%/0.8-0.8 kV

Rated capacity

6600kVA

Application scenarios

solar power plants, wind farms, industrial facilities, mining operations, utilities, and infrastructure projects

Reliable 6.6MVA Containerised Substation for Medium Voltage Power Distribution

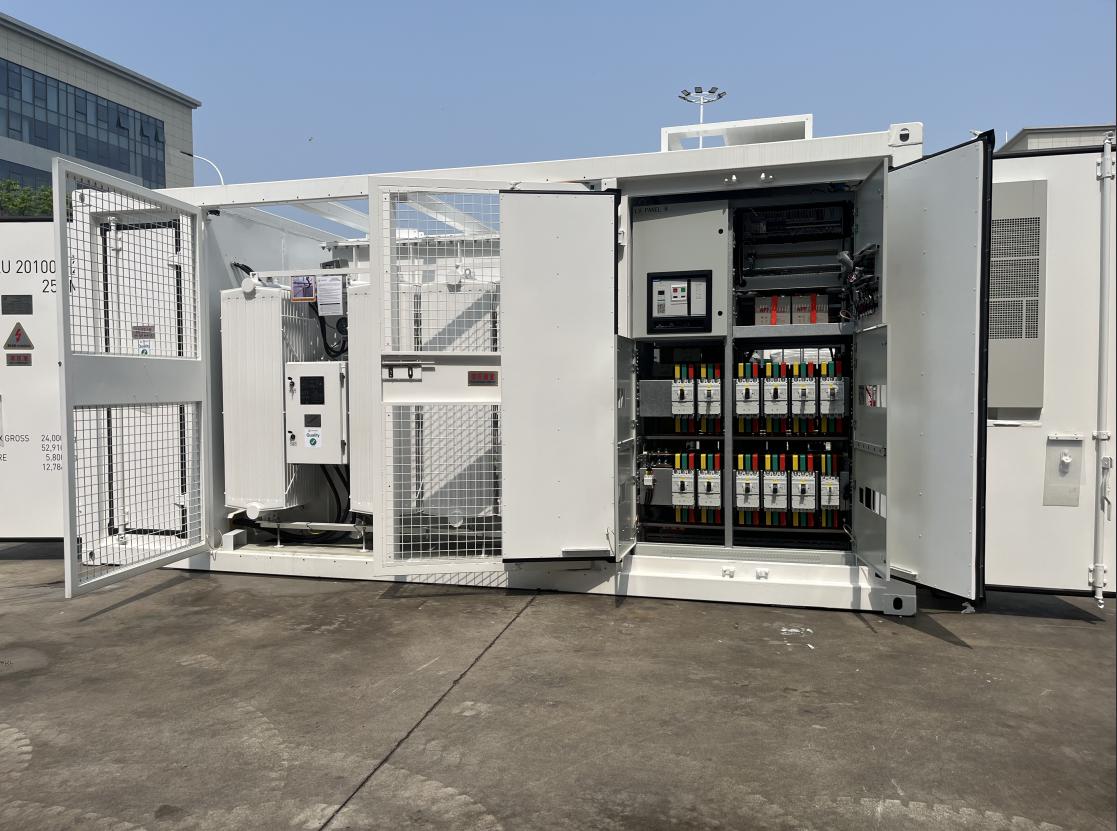

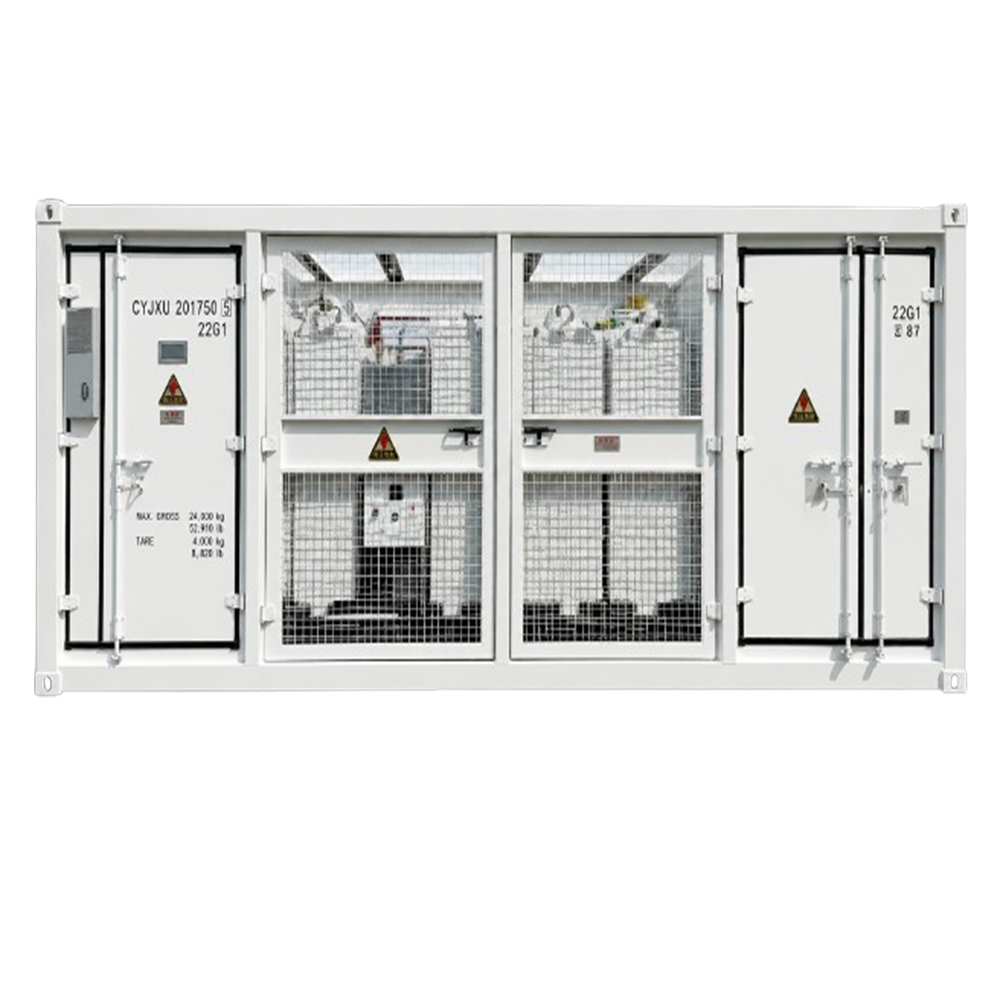

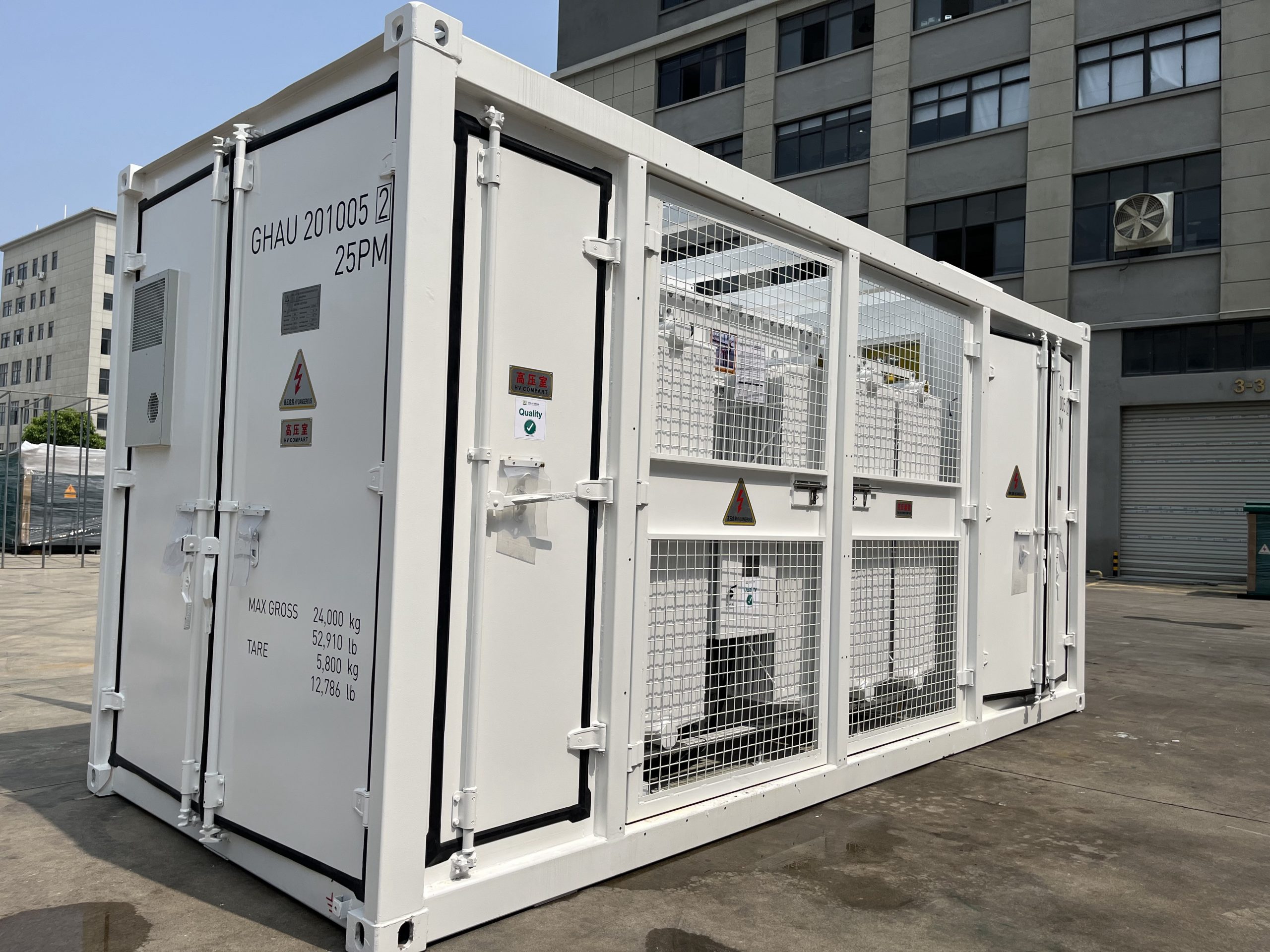

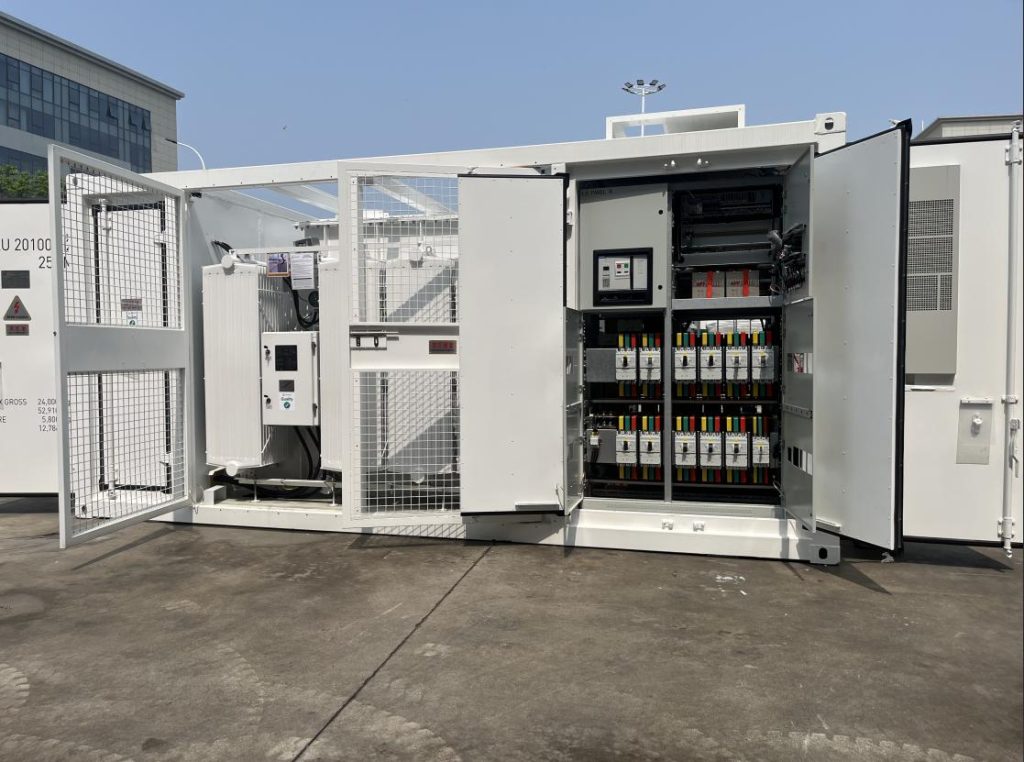

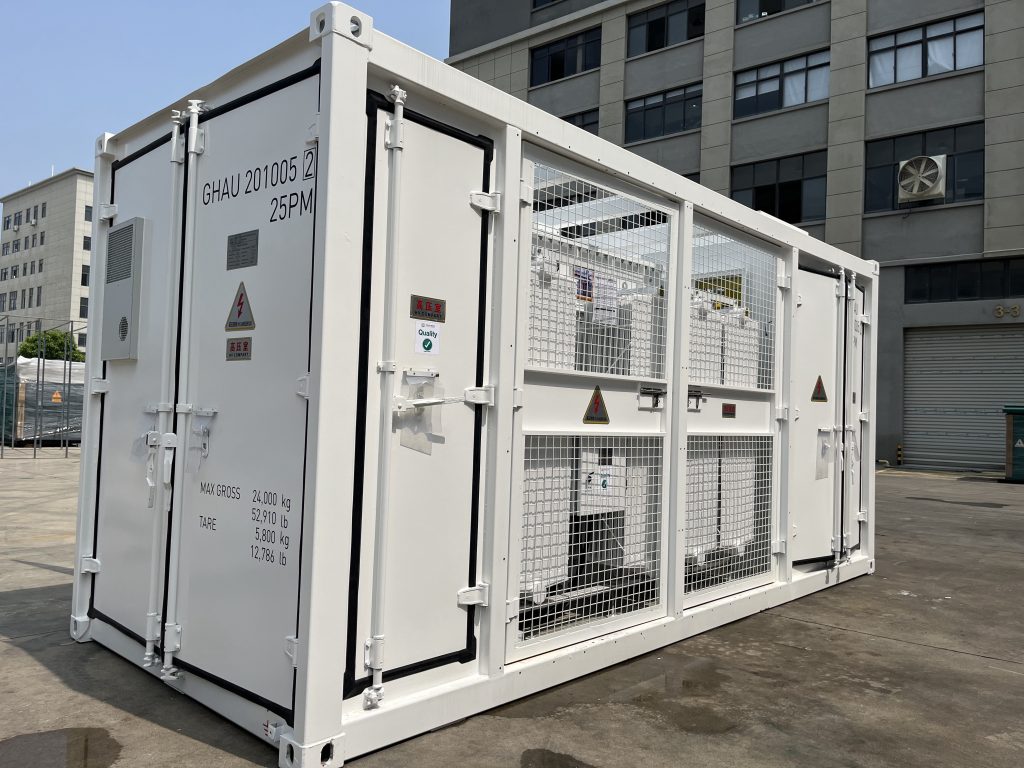

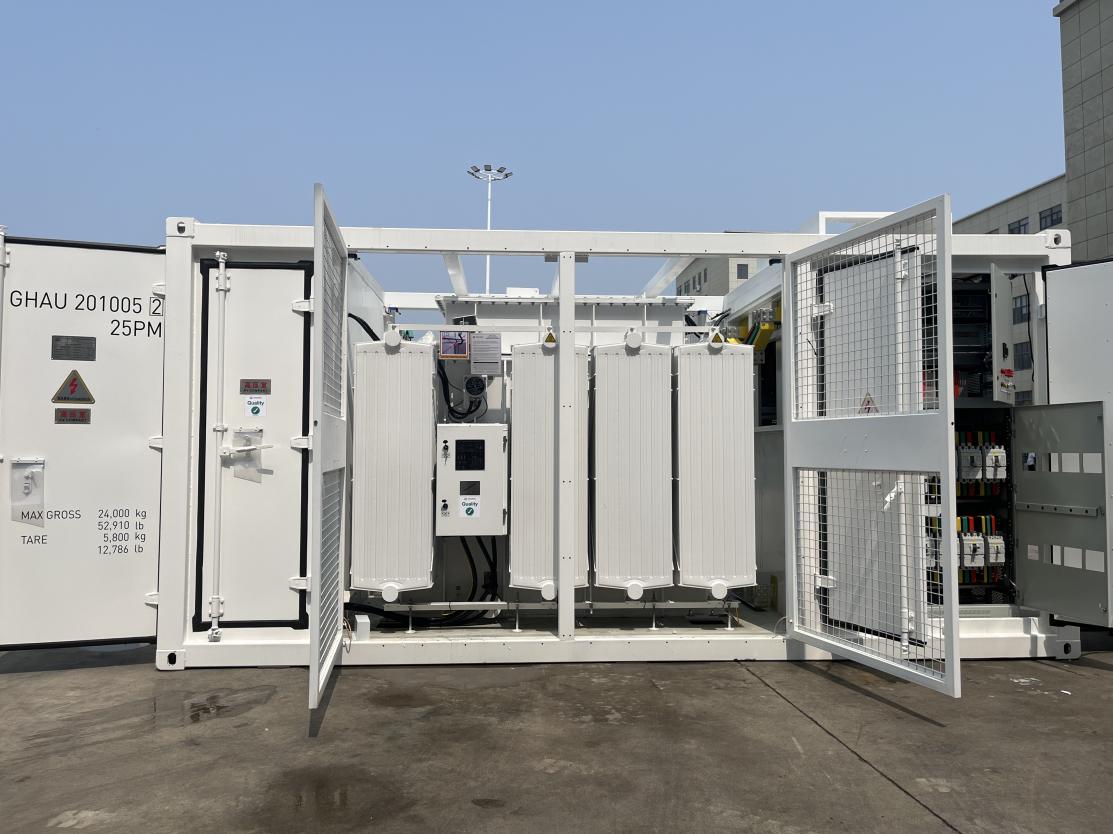

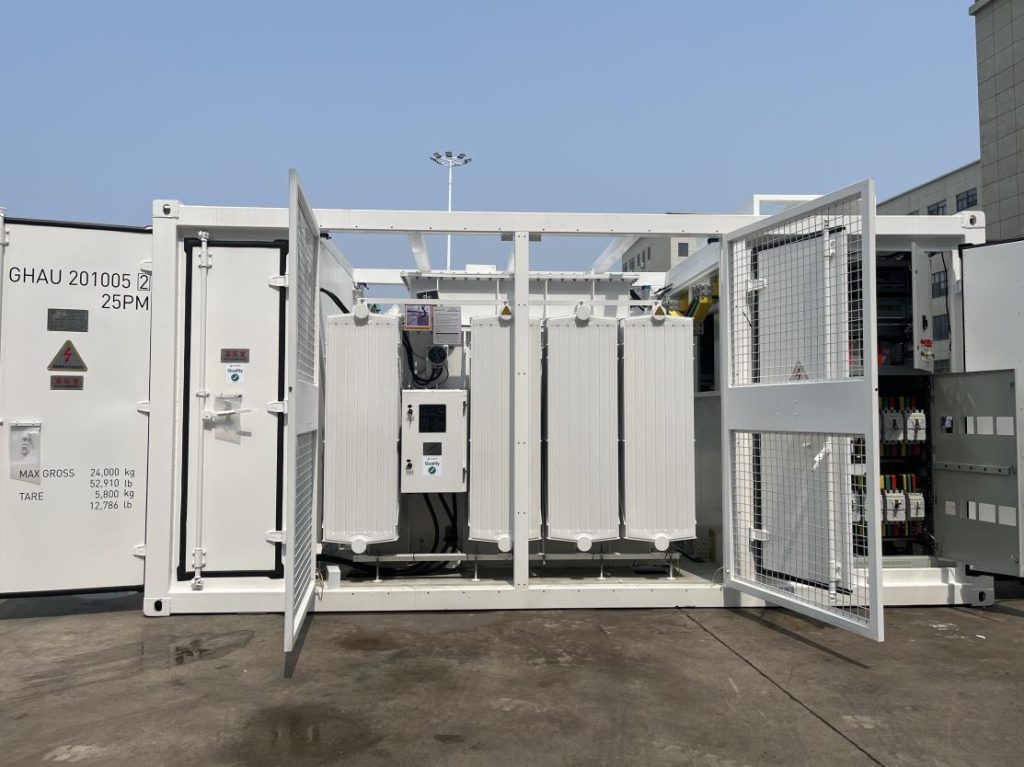

The 6600kVA Containerised Substation is a fully integrated power distribution solution combining medium-voltage switchgear, a 6600kVA oil-immersed transformer, low-voltage distribution equipment, and intelligent monitoring systems within a robust IP54 container enclosure.

Designed in accordance with IEC 60076, the substation features a 20kV ±2×2.5% / 0.8kV-0.8kV transformer, ONAN cooling, Dy11-y11 vector group, and high-reliability protection devices. The factory-assembled design significantly reduces installation time, civil construction costs, and commissioning efforts.

Suitable for solar power plants, wind farms, industrial facilities, mining operations, utilities, and infrastructure projects, this compact substation delivers safe, efficient, and reliable power distribution in demanding environments.

6600kVA Containerised Substation Configuration Table

Item	Equipment	Main Parameters / Specifications
1	HV Outgoing Feeder Cabinet	Type: SF6-24V
2	Oil Immersed Transformer	Rated Capacity: 6600 kVA Rated Voltage: 20±2×2.5%/0.8-0.8 kV Winding Material: Aluminum Vector Group: Dy11-y11 Short-Circuit Impedance: 8.60% Cooling Type: ONAN No-load Loss: 4800 W (±15%) Load Loss: 40900 W (±15%) Frequency: 50 Hz Phase: Three Phase Insulation Level: Class AAltitude: ≤1000 m Ambient Temperature: -25°C ~ +40°C Oil Grade: I-20°C Standard: IEC 60076
3	Incoming Line Cabinet	Main Circuit Breaker Brand: Tengen AC Molded Case Circuit Breaker Brand: Tengen
4	Incoming Line Cabinet	AC Molded Case Circuit Breaker Brand: Tengen
5	Communication Power Cabinet	Including Box-type Substation Measurement and Control Device
6	Container and Connection Busbar	Protection Class: IP54 Dimensions: 3600 × 7000 × 3800 mm

Item

Equipment

Main Parameters / Specifications

HV Outgoing Feeder Cabinet

Type: SF6-24V

Oil Immersed Transformer

Rated Capacity: 6600 kVA

Rated Voltage: 20±2×2.5%/0.8-0.8 kV

Winding Material: Aluminum

Vector Group: Dy11-y11

Short-Circuit Impedance: 8.60%

Cooling Type: ONAN
