Prefabricated Substation: Complete Guide to Compact, Modular Power Distribution Solutions
06-08 2026 | By:
What Is a Prefabricated Substation?
A Prefabricated Substation, also known as a Compact Substation, Package Substation, Box-Type Substation, or Modular Substation, is a factory-assembled power distribution unit that integrates:
- Medium Voltage Switchgear
- Distribution Transformer
- Low Voltage Switchgear
- Protection & Control System
- Metering Equipment
into a single compact enclosure. The entire system is manufactured, tested, and assembled before delivery, significantly reducing onsite installation time and civil construction requirements.
Why Are Prefabricated Substations Becoming the Industry Standard?
As power networks continue to expand globally, utilities, EPC contractors, renewable energy developers, and industrial facilities are increasingly choosing prefabricated substations over conventional substations.
Key drivers include:
Faster Project Deployment
Traditional substations often require extensive civil works, equipment installation, and field commissioning.
A prefabricated substation arrives at site as a complete unit, allowing rapid installation and commissioning. Factory-built systems can dramatically shorten project schedules.
Lower Construction Costs
By reducing onsite labor, engineering complexity, and construction activities, compact substations help minimize total project costs.
Space-Saving Design
The compact structure integrates all major components into a single enclosure, making it ideal for:
- Urban power distribution
- Commercial buildings
- Industrial facilities
- Solar power plants
- Wind farms
- Battery Energy Storage Systems (BESS)
Enhanced Safety
Modern prefabricated substations feature:
- Internal arc protection
- Interlocking systems
- Segregated compartments
- IP54/IP55 protection
- Anti-corrosion structures
ensuring reliable operation in demanding environments.
Main Components of a Prefabricated Substation
1. Medium Voltage Switchgear
The MV compartment receives incoming power from the utility grid and provides:
- Load switching
- Circuit protection
- Isolation
- Fault management
Typical voltage ratings:
- 6kV
- 10kV
- 11kV
- 13.8kV
- 15kV
- 22kV
- 33kV
- 35kV
2. Distribution Transformer
The transformer converts incoming medium voltage to usable low voltage.
Available transformer types:
- Oil-Immersed Transformer
- Dry-Type Transformer
- Amorphous Core Transformer
- Step-Up Transformer (Solar Projects)
Common capacities:
- 315kVA
- 500kVA
- 630kVA
- 1000kVA
- 1250kVA
- 1600kVA
- 2000kVA
- 2500kVA
3. Low Voltage Distribution System
The LV compartment distributes power to end users through:
- MCCBs
- ACBs
- Busbar Systems
- Reactive Power Compensation
- Energy Metering
Typical Technical Specifications
| Item | Specification |
|---|---|
| Rated Voltage | 6kV–40.5kV |
| Transformer Capacity | 100kVA–10000kVA |
| Frequency | 50Hz / 60Hz |
| Protection Class | IP54 / IP55 |
| Cooling Method | ONAN / Dry Type |
| Standards | IEC 62271-202, IEC 60076, IEC 61439 |
| Installation | Outdoor / Indoor |
| Enclosure Material | Galvanized Steel / Stainless Steel |
The most widely recognized international standard for prefabricated substations is IEC 62271-202, covering factory-built AC substations up to 52kV.
Types of Prefabricated Substations
European Type Compact Substation
Characteristics:
- HV compartment
- Transformer compartment
- LV compartment
Advantages:
- Easy maintenance
- High flexibility
- Suitable for utility projects
Types of Prefabricated Substations
European Type Compact Substation
Characteristics:
- HV compartment
- Transformer compartment
- LV compartment
Advantages:
- Easy maintenance
- High flexibility
- Suitable for utility projects

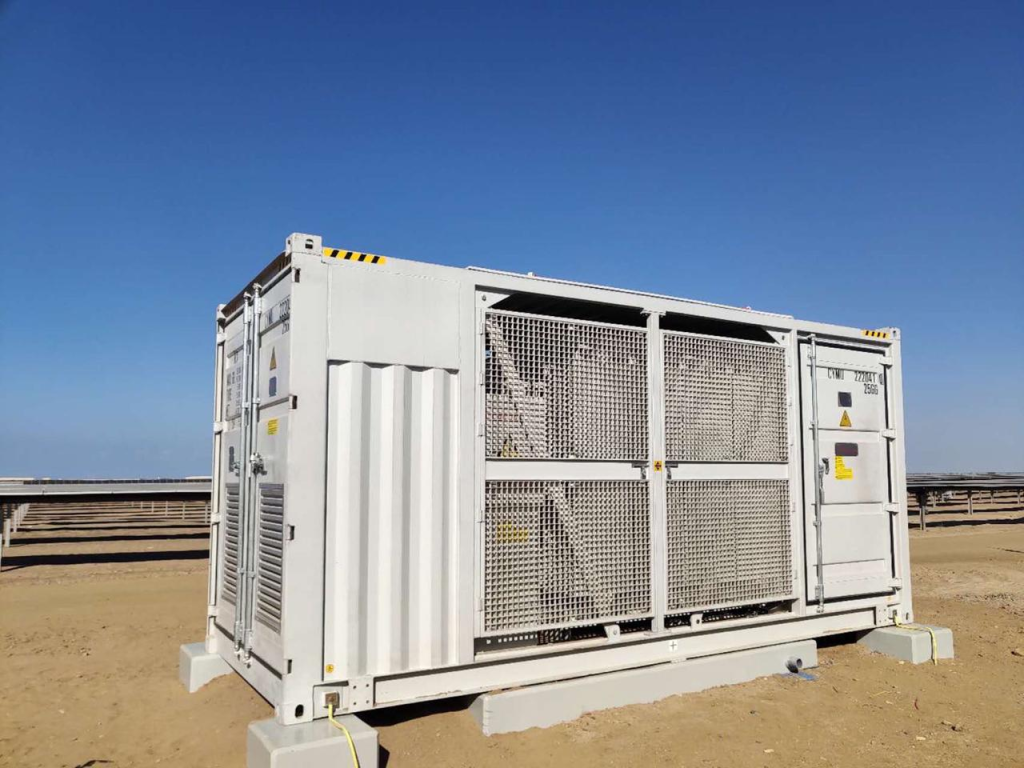

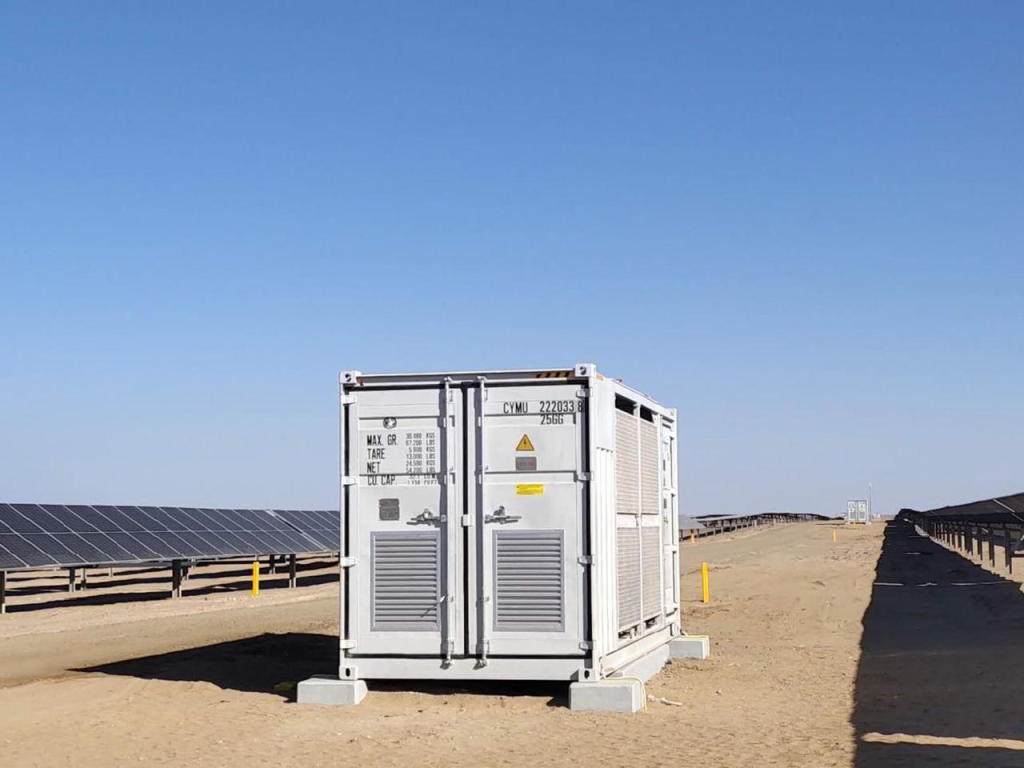

Solar PV Prefabricated Substation
7 Designed specifically for photovoltaic power plants.
Functions:
- Collect inverter output
- Step up voltage
- Connect to MV grid
Typical ratings:
- 1000kVA
- 1600kVA
- 2000kVA
- 3150kVA
Modern solar farms increasingly rely on compact PV substations for rapid deployment and efficient grid integration.
BESS Prefabricated Substation
Battery Energy Storage Systems require:
- Transformer integration
- MV switchgear
- Protection systems
- SCADA monitoring
Factory-built E-House and modular substations have become popular for large-scale BESS installations.
Applications of Prefabricated Substations
Renewable Energy
- Solar Power Plants
- Wind Farms
- Energy Storage Projects
Utilities
- Distribution Networks
- Grid Expansion
- Rural Electrification
Industrial Facilities
- Manufacturing Plants
- Steel Mills
- Mining Operations
- Oil & Gas Projects
Commercial Infrastructure
- Airports
- Data Centers
- Hospitals
- Shopping Centers
How to Select the Right Prefabricated Substation
Before requesting a quotation, buyers should confirm:
Electrical Parameters
- Primary Voltage
- Secondary Voltage
- Transformer Capacity
- Short-Circuit Rating
Environmental Conditions
- Ambient Temperature
- Altitude
- Humidity
- Corrosion Level
Project Requirements
- Utility Grid Connection
- Solar Farm Application
- Industrial Power Distribution
- BESS Integration
Compliance Standards
- IEC 62271-202
- IEC 60076
- IEC 61439
- ANSI / IEEE Standards
