800 kVA Dry‑Type Step‑up Transformer for Solar Plants
10-28 2025 | By:
Small-to-medium PV plants require compact yet reliable transformers. ZTelec’s 800 kVA dry-type step-up transformer provides excellent efficiency and low maintenance for rooftop and distributed solar installations.
Specifications Table
| Parameter | Value |
|---|---|
| Rated Capacity | 800 kVA |
| Primary Voltage | 0.69 kV / 1 kV |
| Secondary Voltage | 10 kV |
| Cooling Method | AN (Air Natural) |
| Insulation Class | F class resin |
| Impedance | 4–6 % |
| Noise Level | ≤ 60 dB |
| Mounting Type | Indoor / Semi‑outdoor |
+86 166 5027 3776 Immediately communicate with engineers for a quote!
PV Applications
-
Step-up transformer at inverter output for community or industrial rooftop PV.
-
Easy installation near inverters with minimal footprint.
-
Ideal for regions with moderate ambient temperatures.
+86 166 5027 3776 Immediately communicate with engineers for a quote!
+86 166 5027 3776 Immediately communicate with engineers for a quote!

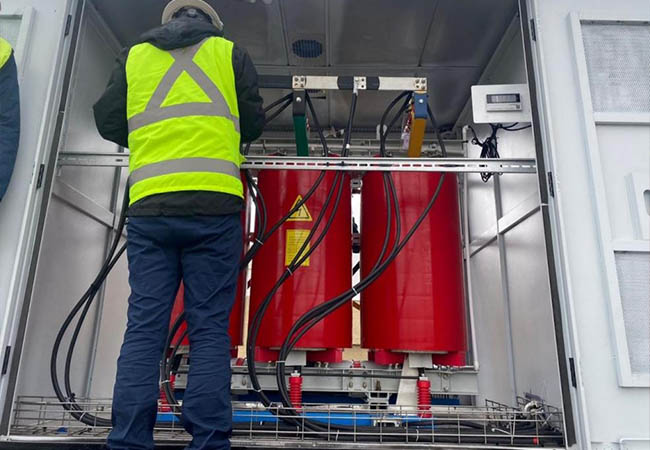

13.2/0.48kV 2000kVA Dry type transformer Chile project
+86 166 5027 3776 Immediately communicate with engineers for a quote!
+86 166 5027 3776 Immediately communicate with engineers for a quote!
Top Purchasing Tips
-
Confirm capacity aligns with solar inverter output.
-
Ensure impedance and short-circuit withstand meets grid code.
-
Verify environmental suitability: indoor vs. semi-outdoor.
-
Ask for customization options including branded switchgear integration.
+86 166 5027 3776 Immediately communicate with engineers for a quote!
ZTelec Advantage
-
Certified PV transformer manufacturer with direct factory supply.
-
Fast delivery and worldwide export experience.
-
Custom voltage, tap changers, and accessories integration (ABB/Schneider).
