Introduction
Transformer overheating is one of the main causes of failure in power systems. Efficient cooling is essential to ensure stable operation, especially in high-load environments.
ZTELEC Yuguang provides advanced high-efficiency transformer radiator solutions designed for optimal thermal performance.
Heat Generation in Transformers
Transformers generate heat due to:
- Copper losses
- Core losses
- Eddy currents
If not properly dissipated, heat leads to:
- Insulation aging
- Reduced lifespan
- System failure
Cooling Methods Explained
ONAN (Oil Natural Air Natural)
- Natural oil circulation
- Passive air cooling
ONAF (Oil Natural Air Forced)
- Fans improve cooling efficiency
👉 Radiator panels are critical in both systems.

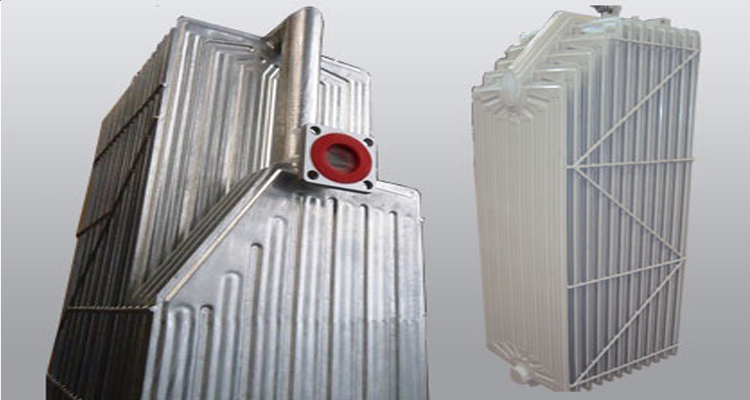

Key Design Factors for Radiators
1. Surface Area
More area = better heat dissipation
2. Oil Flow Design
Optimized channels improve cooling
3. Fin Structure
Corrugated fins enhance airflow
ZTELEC Yuguang Technical Advantages
🔹 High Heat Transfer Rate
Optimized fin geometry
🔹 Low Thermal Resistance
Improved oil circulation
🔹 Structural Strength
Withstands pressure and vibration
Application Scenarios
- High-load substations
- Renewable energy plants
- Marine power systems
- Industrial facilities
Performance Benefits
- Lower operating temperature
- Extended transformer life
- Reduced maintenance cost
- Improved efficiency
Material Technology
We use:
- High-grade steel
- Anti-corrosion coating
- Precision welding
Testing & Quality Assurance
- Leak testing
- Pressure testing
- Coating inspection
Why Choose ZTELEC Yuguang
- Advanced engineering
- Reliable performance
- Global project experience
Call to Action
👉 Upgrade your transformer cooling system today
Contact ZTELEC Yuguang for high-efficiency radiator solutions.
