SCB-1250kVA/10/0.4kV dry-type transformer
07-23 2025 | By:
SCB-1250kVA/10/0.4kV dry-type transformer
SCB-1250/10-0.4 dry-type transformer is a secondary energy-saving transformer. The 1250kVA capacity can load about 1000kW of power, and the no-load and load losses are low.
Why choose SCB-1250kVA dry-type transformer?
Three Phase Dry Type Transformer
High efficiency and energy saving, reducing operating costs:
SCB-1250kVA dry-type transformer adopts high-quality low-loss silicon steel sheets and advanced winding structure. The no-load loss and load loss are greatly reduced. The energy efficiency level reaches the national first-level energy efficiency standard, effectively reducing your power consumption and operating costs.
Energy efficiency level: Second-level energy efficiency
No-load loss: 1420 W
Load loss: 8720 W
Safe and reliable, ensuring stable operation:

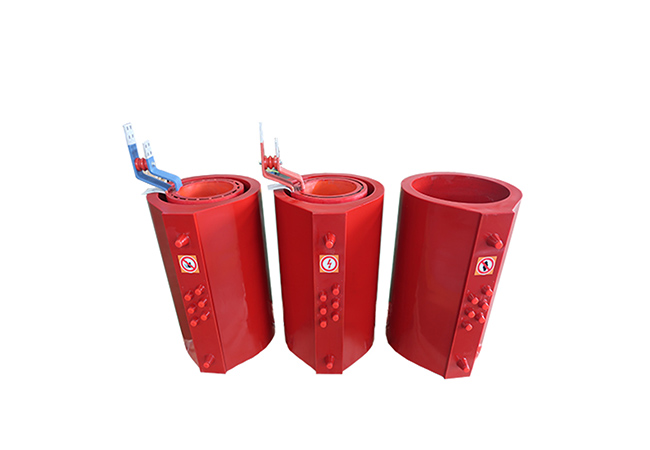

Using flame-retardant epoxy resin casting, it has good insulation and heat dissipation performance, fireproof and explosion-proof, and can operate stably in harsh environments. At the same time, it is equipped with a complete temperature monitoring and protection system to ensure the safe and reliable operation of the transformer.
Environmentally friendly and durable, long service life:
Made of environmentally friendly materials, it is pollution-free, recyclable, and meets national environmental protection requirements. At the same time, the product structure is reasonably designed, has strong short-circuit resistance, and has a service life of more than 30 years
Easy maintenance and saves maintenance costs:
Dry-type transformers do not require oil immersion, are maintenance-free, and save maintenance costs. At the same time, the product has a compact structure, small footprint, and is easy to install and maintain.
Medium Voltage Dry Type Transformers
Meaning of SCB-1250kVA dry-type transformer model
SCB: S stands for three-phase, C stands for epoxy resin casting, and B stands for low-voltage foil winding
1250: The rated capacity is 1250kVA.
10/0.4: The rated voltage on the high-voltage side is 10kV, and the rated voltage on the low-voltage side is 0.4kV.
SCB dry-type transformer loss table
| Rated capacity | No-load loss | Load loss | impedance |
|---|---|---|---|
| 30kva | 130 | 640 | 4% |
| 50kva | 185 | 900 | |
| 80kva | 250 | 1240 | |
| 100kva | 270 | 1415 | |
| 125kva | 320 | 1665 | |
| 160kva | 365 | 1915 | |
| 200kva | 420 | 2275 | |
| 250kva | 490 | 2485 | |
| 315kva | 600 | 3125 | |
| 400kva | 665 | 3590 | |
| 500kva | 790 | 4390 | |
| 630kva | 910 | 5290 | |
| 630kva | 885 | 5365 | 6% |
| 800kva | 1035 | 6265 | |
| 1000kva | 1205 | 7315 | |
| 1250kva | 1420 | 8720 | |
| 1600kva | 1665 | 10555 | |
| 2000kva | 2075 | 13005 | |
| 2500kva | 2450 | 15445 |
SCB-1250kVA dry-type transformer is applicable to:
1. Public places such as high-rise buildings, commercial centers, hospitals, and schools
2. Industrial fields such as industrial and mining enterprises, petrochemicals, and rail transit
3. Emerging fields such as new energy power generation and data centers
500kva dry-type transformer with shell exported to the United States
ZTELEC YUGUANG provides you with:
Professional technical support: Our technical team will provide you with all-round technical support from selection, installation to maintenance to ensure that you have no worries.
Perfect after-sales service: We promise to provide 24-hour quick response service to promptly solve the problems you encounter during use.
SCBH15-100~2500-10 Amorphous alloy dry-type transformer
The most competitive price: We have advanced production equipment and a complete supply chain system to ensure that we provide you with the most cost-effective products.
Contact us now to learn more about the parameters of SCB-1250kVA dry-type transformers and get exclusive quotation solutions!
