PRODUCTSolar Transformers 3 Phase Pad Mounted Transformer 13.2KV 13.8KV 12.47KV 480/277V Solar Substation

3 Phase Pad Mounted Transformer 13.2KV 13.8KV 12.47KV 480/277V Solar Substation

Rated voltage	13.2KV 13.8KV 12.47KV 34.5KV
Rated capacity	75kva-3750kva

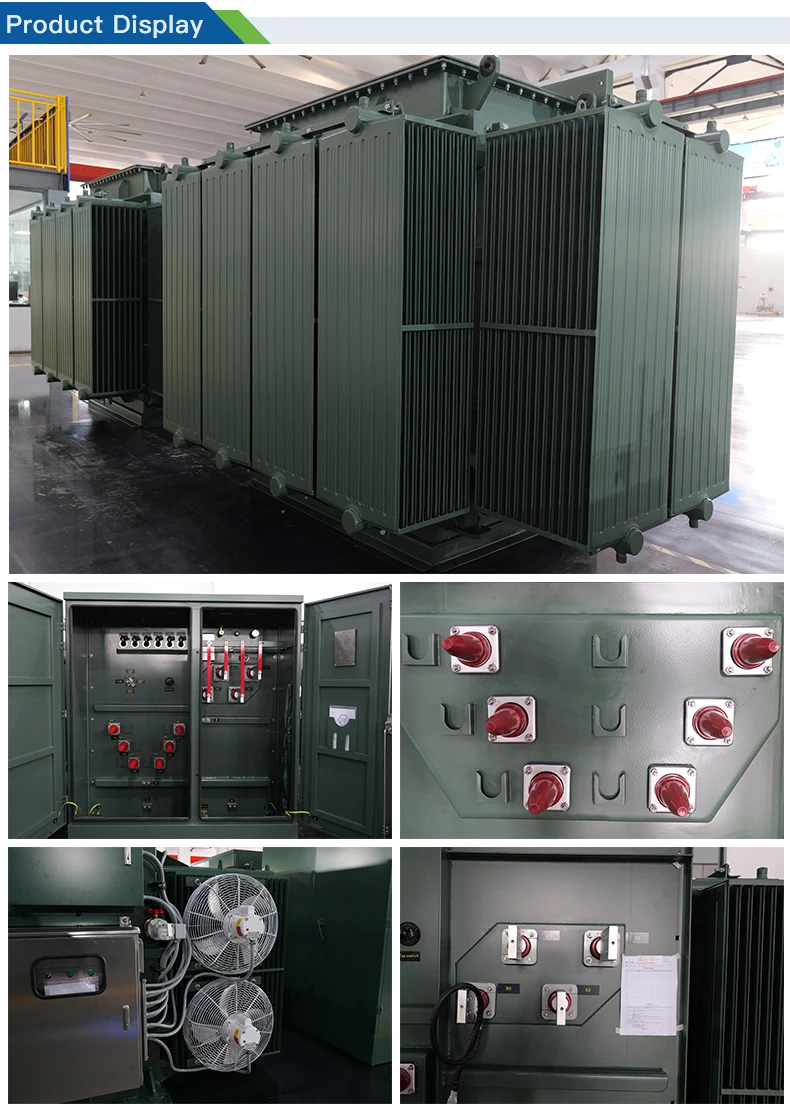

Three-phase pad-mounted distribution transformers are designed for balanced power distribution, high reliability, and stable operation in utility, commercial, and industrial power networks. RYAN pad-mounted transformers comply with ANSI and IEEE standards and are suitable for outdoor medium-voltage distribution systems.

Featuring a dead-front, fully sealed tank design, these transformers enhance operational safety, protect internal components from environmental exposure, and reduce maintenance requirements. Oil-immersed construction with ONAN cooling ensures efficient heat dissipation and reliable long-term operation.

ZTELEC YUGUANG three-phase pad-mounted transformers support common high-voltage inputs such as 12.47kV, with voltage classes up to 35kV, and low-voltage outputs including 480Y/277V, 400V, and 380V. Rated capacities range from 630kVA to 1600kVA. Optional UL listing is available.

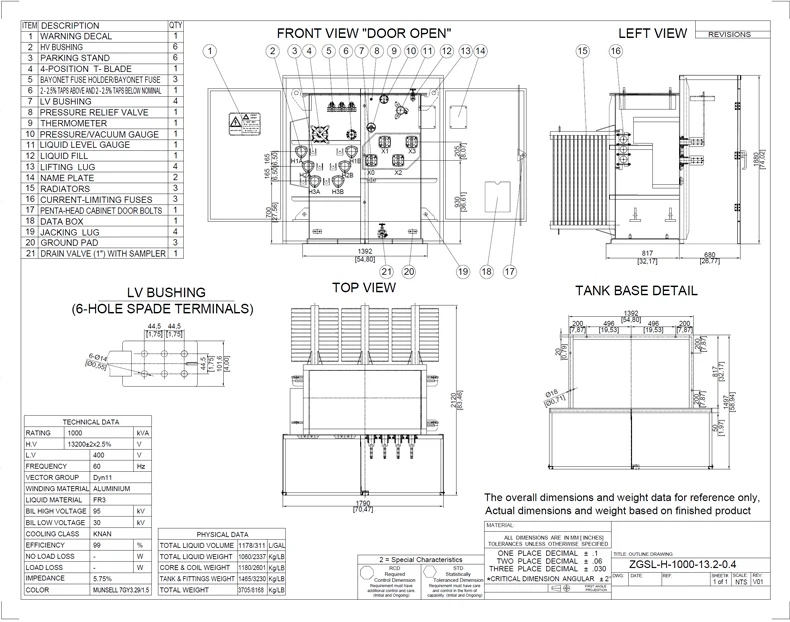

Tachnical Data for Three Phase Pad Mounted Transformer
Rated Power (KVA)	Loss (W)		Dimension(mm)			Weight(kg)
Rated Power (KVA)	No-load Loss (W)	On-load Loss (W)	W	D	H	Weight(kg)
75KVA	180	1250	1390	910	1430	645
150KVA	280	2200	1510	980	1530	989
300KVA	480	3650	1660	1080	1680	1415
500KVA	680	5100	1810	1160	1790	1905
750KVA	980	7500	2030	1300	2030	2755
1000KVA	1150	10300	1651	1549	1854	3235
1500KVA	1640	14500	2210	1470	2150	5835
2000KVA	2160	20645	2380	1600	2220	6430
2500KVA	2680	27786	3070	1650	2330	8865
3000KVA	3300	30300	3260	1850	2460	11300
3750KVA	4125	37875	4080	2060	2680	14400
