10MVA Three Phase Substation Transformer

Rated voltage	4.16kv-34.5kv
Rated capacity	800kva-10mva

10MVA Three Phase Substation Transformer Product Description

10MVA Three Phase Substation Transformer Oil Type Step Down 22.9KV To 4160V IEC60076 Standard

ZTELEC YUGUANG offers a complete line of liquidfilled distribution transformers that meet current applicble ANSI, IEEE, CSA, AS, DOE standards. With high voltages up to 44 kV and ratings up to 20 MVA.

The substation transformers designed by WINLEY Electric are based on IEC60076 standard. They absorb and utilize advanced domestic and foreign technologies to optimize the transformer core, coil, body, lead wire, oil tank and other components. They have the characteristics of low partial discharge, low loss, low noise, light weight and long service life.

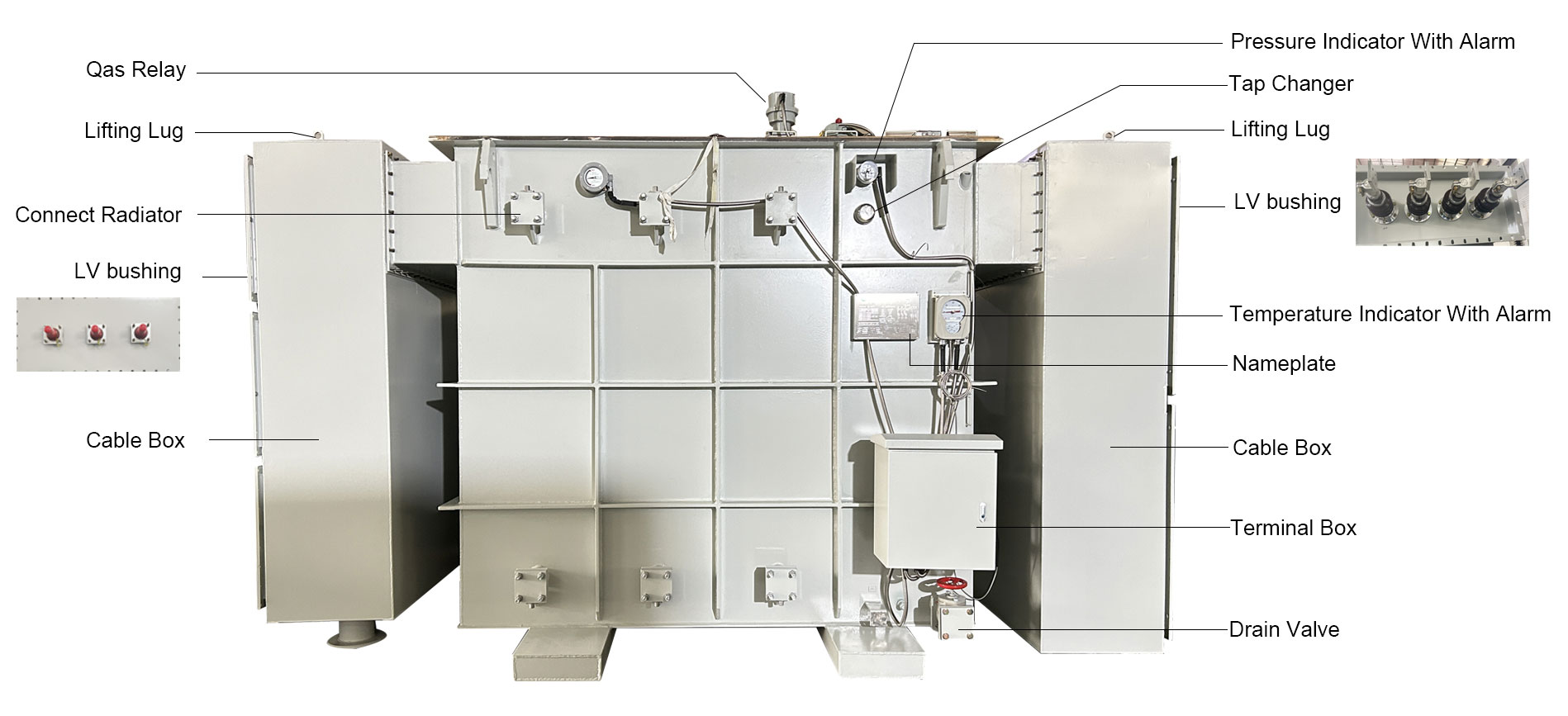

Product Structure

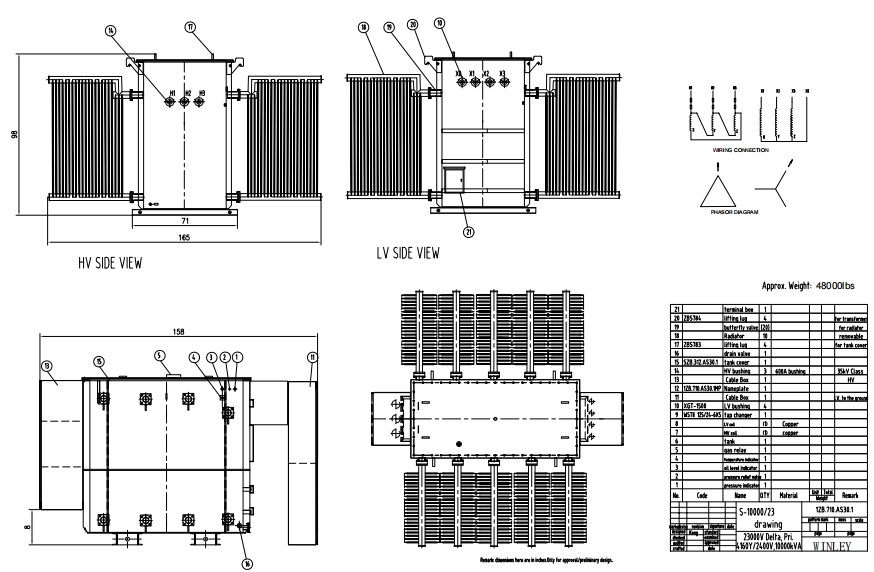

10MVA Three Phase Substation Transformer Product drawings

10MVA Three Phase Substation Transformer Main Data

No.	Particulars	Unit	Specification
1	Type	~	oil type
2	Rated capacity	kVA	10000
3	No. of Phase	~	3
4	Primary voltage	kV	22.9
5	Secondary voltage	kV	4.16Y/2.4
6	Tapping type	~	off-load
7	Tapping range	%	±2*2.5
8	Cooling method	~	ONAN
9	Rated frequency	Hz	60
10	Vector group	~	Dyn1
11	Insulation class	~	A
12	Temperature rise	K	65/60 (winding/top oil)
13	Off-load loss	W	9500
14	On-load loss (75℃)	W	45000
15	Impedance	%	7
16	Winding material	~	Cu
17	Core material	~	silicon steel
18	Cooling material		mineral oil
19	Dimension	mm	400032003600 (LWH)
20	Weight	kg	19000
21	Service condition	~	outdoor
22	Sea level	M	≤1000
23	Standard	~	IEC60076

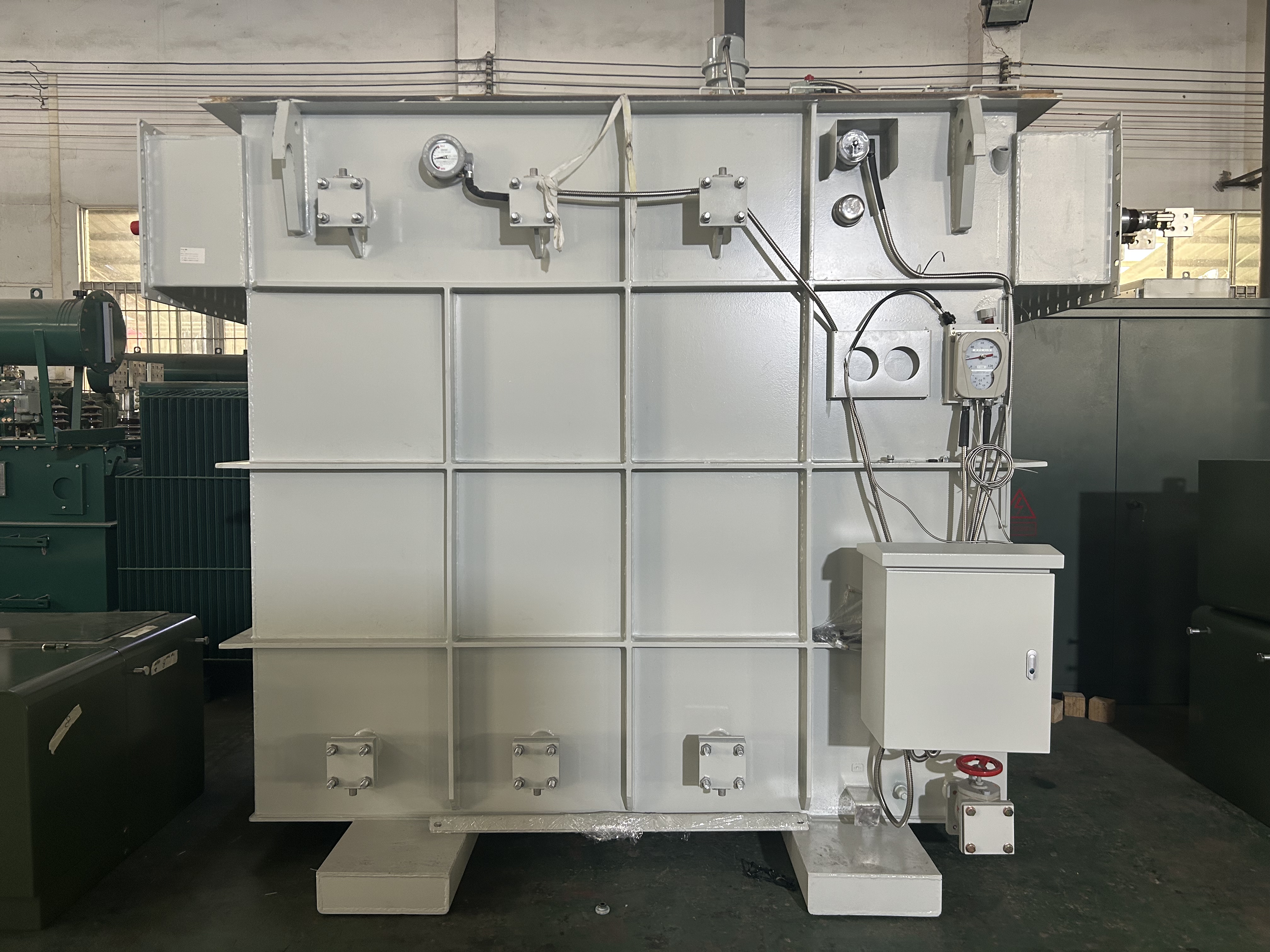

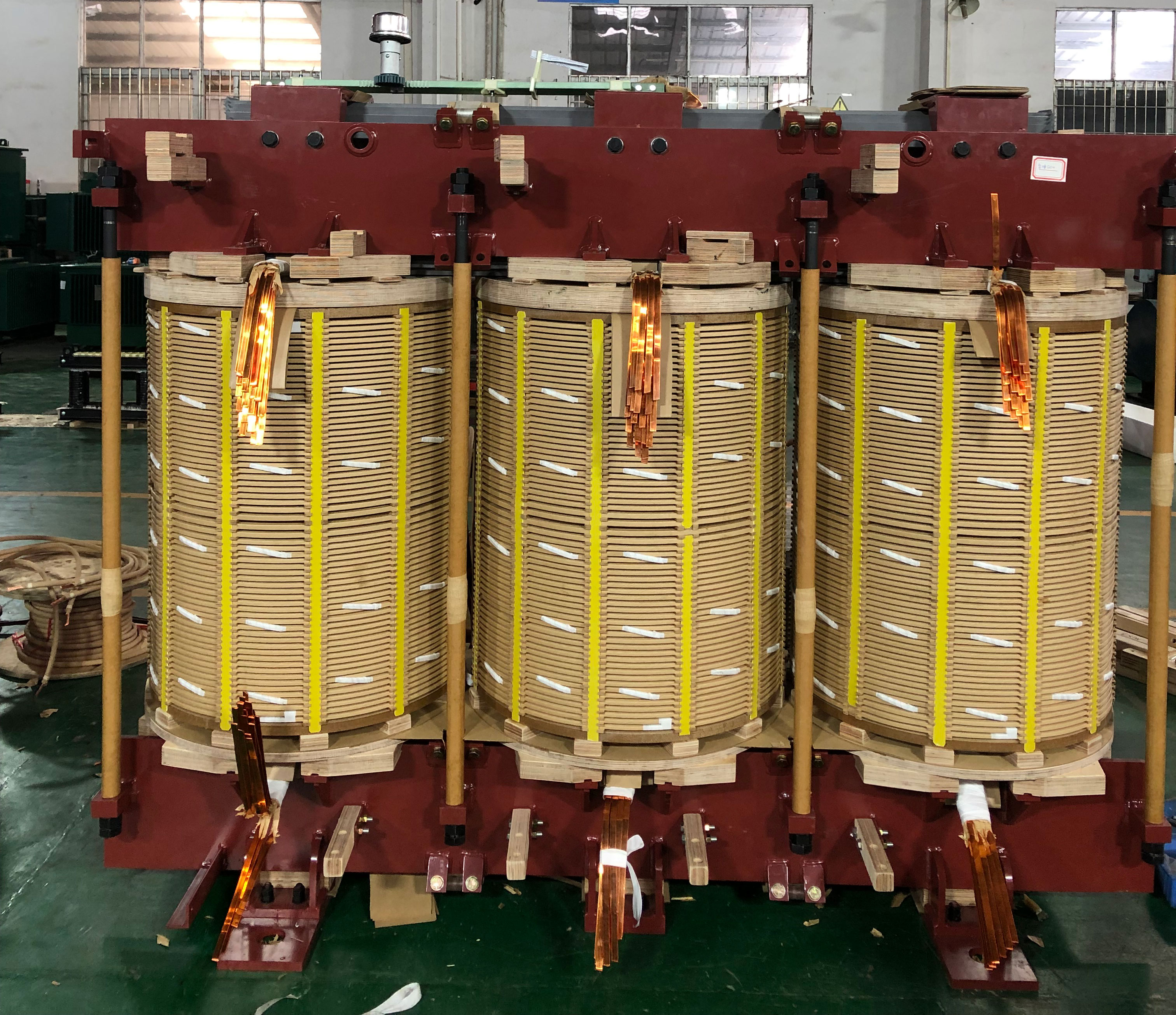

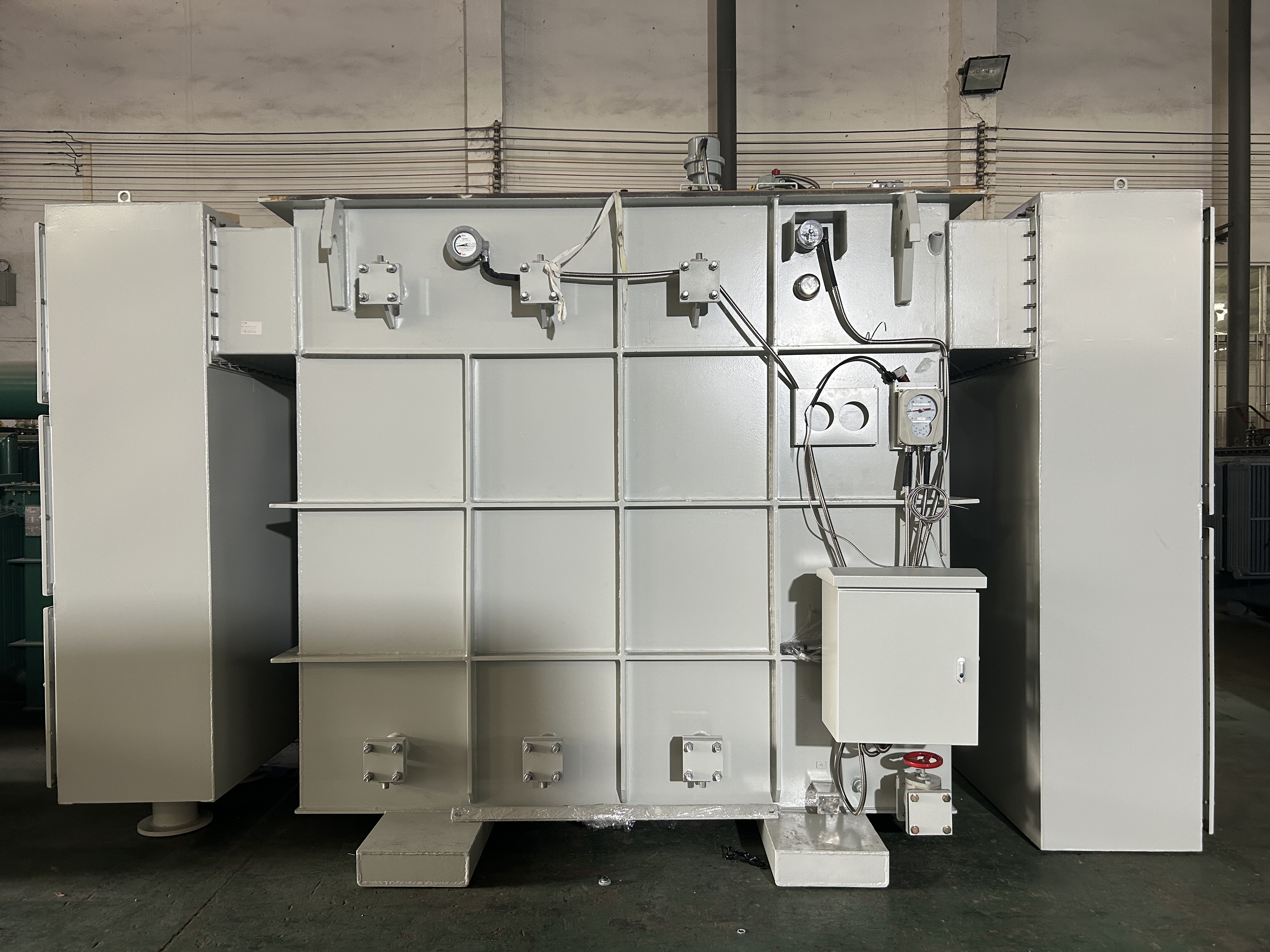

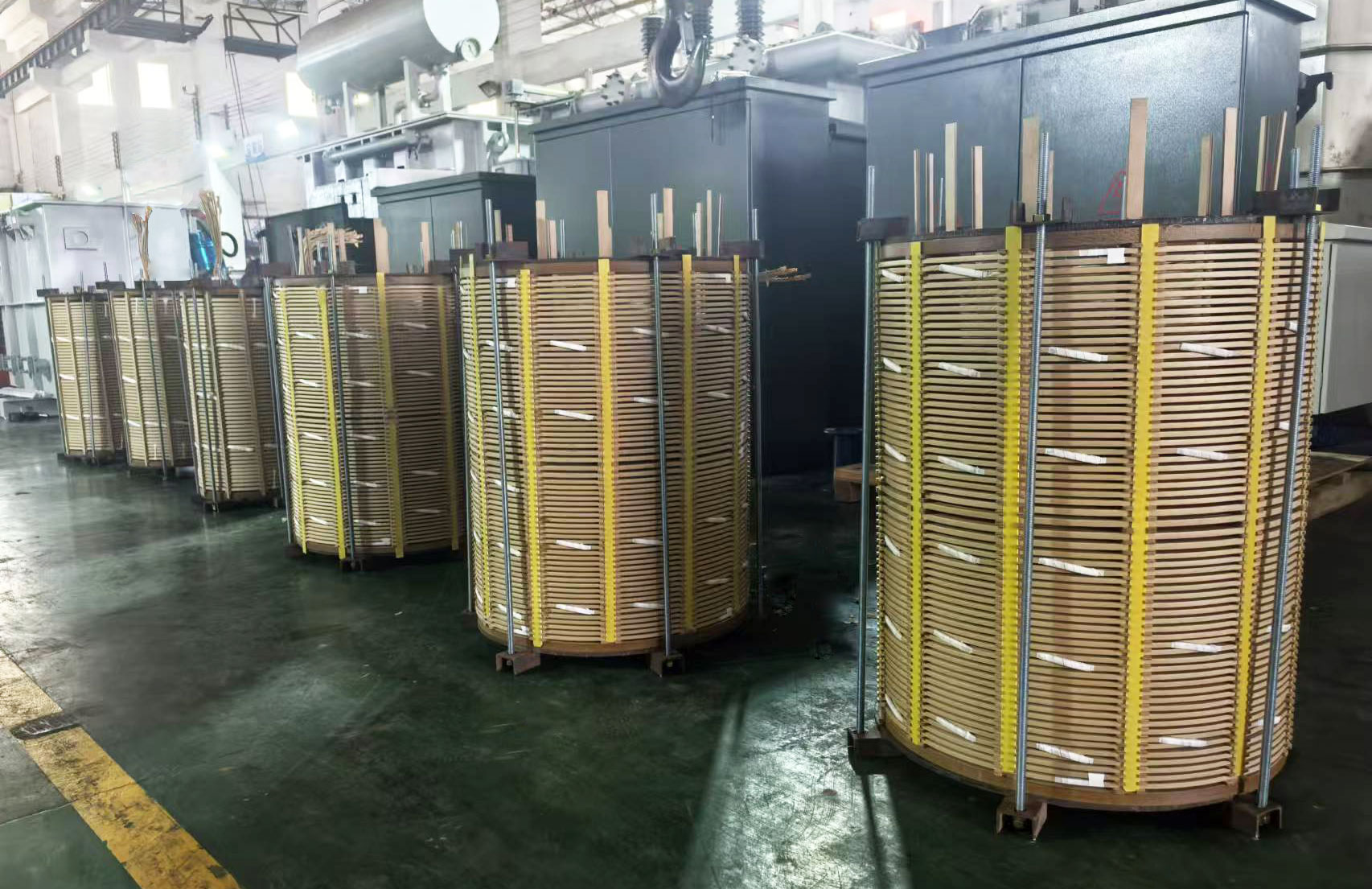

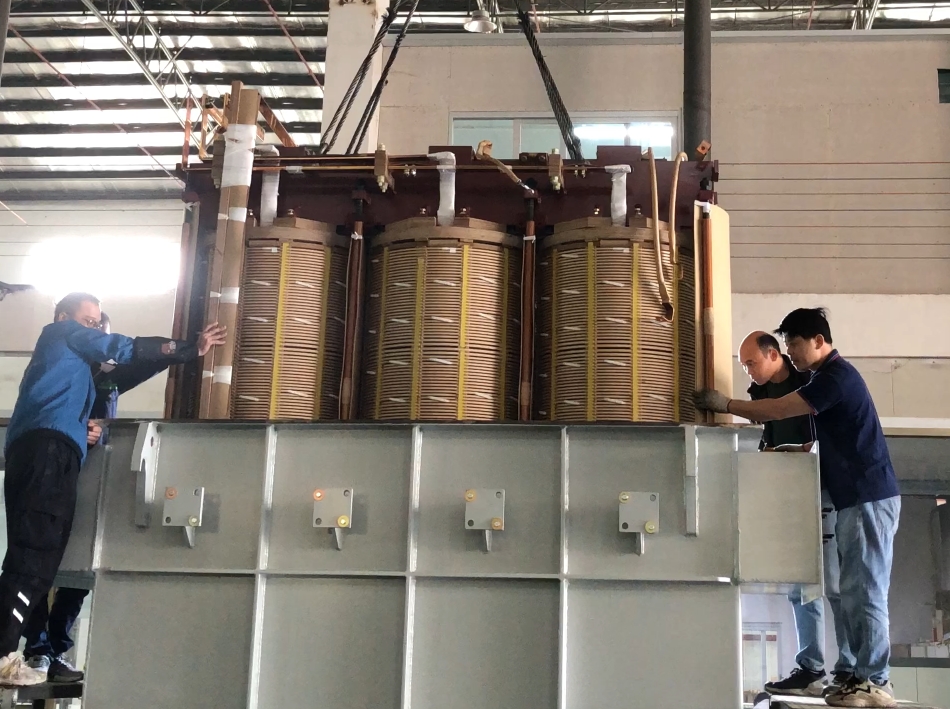

Production photos

Standard Feature

*Carbon steel, optional stainless steel tank
*Bushings: Top-mounted / Side-mounted
*Insulation Fluids: mineral insulating oil, Envirotemp™ FR3™ fluid,
*Standards: ANSI/IEEE,DOE, CSA, AS/NS, IEC, etc
* 65°C average winding rise

* HV and LV bushings
* HV and LV flange connections
* Pressure-vacuum gauge
* Liquid level gauge
* Liquid temperature gauge
*Pressure test valve
* Drain / filter valve with sampling device
* Tank lifting lugs
* Corrosion resistant nameplate

PRODUCT SPECIFICATION

Rated Capacity (kVA)	High Voltage (KV)	Low Voltage (V)	Connection Symbol	Short Circuit Impendence (%)	No-load loss (W)	On-load loss (W)	Dimension WHD(mm)	Weight (kg)
800	4.16KV 12.47KV 13.2KV 13.8KV 24.94KV 34.5KV or others	208/120V 480/277V 600V 12470V 13200V 13800V or others	Dyn1 Ynyn0 Dyn11 Dd0 Ynd11 or others	2.7 3.1 4.35 5.75 6.0	980	9350	106015001780	2050
1000					1160	11500	108515701800	2450
1250					1380	13900	116016101890	2900
1600					1660	16600	119016301950	3400
2000					2030	18300	126017002090	4100
2500					2450	19600	115021502250	4750
3000					3240	26500	190026002150	6500
5000					4500	27000	250022103180	9500
7500					7200	32000	366031005100	13600
10000					8500	35500	383026402216	15800
