Power Transformer 20 MVA Power Transformer

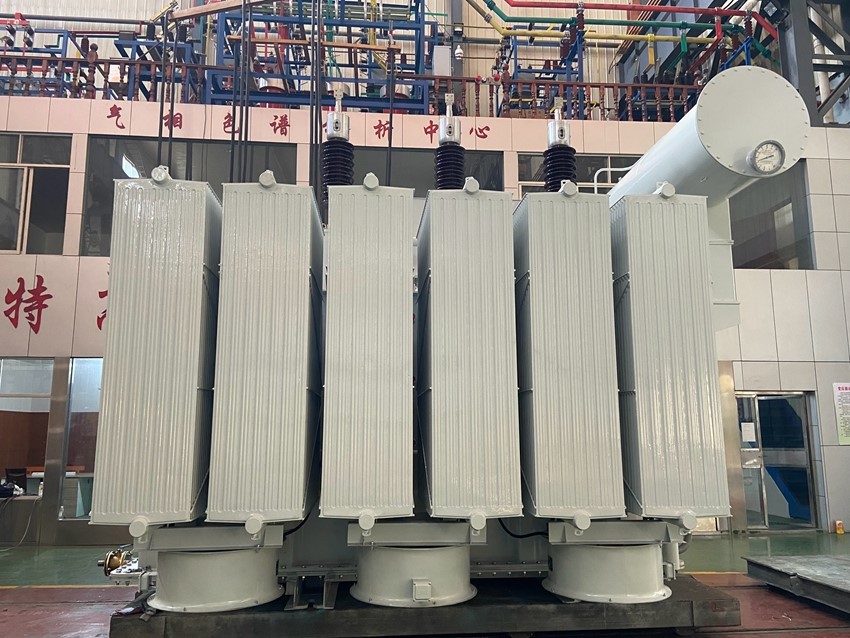

20 MVA Power Transformer

Rated voltage	20kv-110kv
Rated capacity	20mva
Application scenarios	substations, industrial, or renewable energy projects.
Certifications & Standards	IEC 60076 / IEEE / ANSI / GB

Ensure reliable, efficient power delivery with our 20 MVA medium-high voltage transformer, engineered for substations, industrial plants, and renewable energy facilities. Designed to handle multiple voltage levels, from 20 kV up to 110 kV, this transformer combines low-loss performance, mechanical durability, and long-term operational stability.

Applications

Substations & Power Grids: Step-up and step-down transformer applications for 20 kV, 30 kV, 66 kV, 72 kV, and 110 kV networks
Industrial Facilities: Steel, cement, chemical, and mining plants needing stable medium-high voltage supply
Renewable Energy Projects: Wind farms and solar PV plants requiring step-up transformers for efficient grid integration
Infrastructure & Utilities: Airports, railway systems, hospitals, and data centers
Grid Expansion & Upgrade: Substation upgrades, network expansion, and voltage stabilization

Key Features

Compatible with multiple voltages: 20, 30, 66, 72, 110 kV
High efficiency with minimized no-load and load losses
Strong resistance to short-circuit and overload conditions
Flexible cooling options: ONAN / ONAF / OFAF
Tap changers: OLTC or DETC for precise voltage adjustment
Long operational lifespan: 25–30 years

Professional Technical Specifications

Parameter	Specification
Rated Capacity	20 MVA
High Voltage	20 / 30 / 66 / 72 / 110 kV
Low Voltage	11 / 33 kV
Frequency	50 / 60 Hz
Vector Group	Dyn11 / YNd11 / Yyn0
Short-Circuit Impedance	8–12%
No-Load Loss	6–10 kW
Load Loss	50–70 kW
Cooling Method	ONAN / ONAF / OFAF
Tap Changer	±5% / ±10% OLTC or DETC
Noise Level	≤ 60 dB
Standards	IEC 60076 / IEEE / ANSI

Get Your Quote Today – Customize your 20 MVA transformer for substations, industrial plants, or renewable energy projects. Contact our expert team for consultation, technical specifications, and delivery options.
