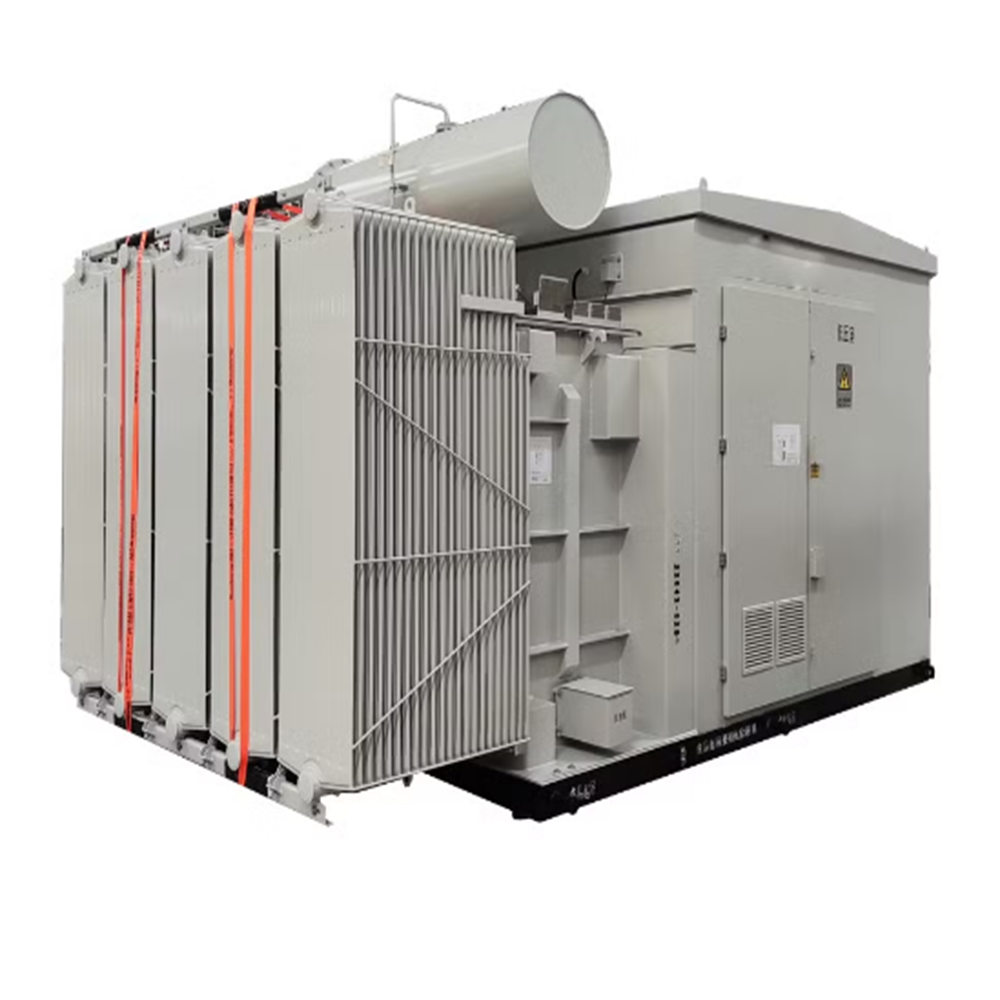

Solar Energy Power Generation Compact Substation Compact Power Transformer

Rated voltage	HV:33kV/20kv/11kv/6kv LV:0.48 kV/6kv/11kV
Rated capacity	500 kVA-10000 kVA
Application scenarios	Solar Energy Power Generation Compact Substation Compact Power Transformer

Rated voltage

HV:33kV/20kv/11kv/6kv LV:0.48 kV/6kv/11kV

Rated capacity

500 kVA-10000 kVA

Application scenarios

Solar Energy Power Generation Compact Substation Compact Power Transformer

Solar Energy Power Generation 6900kVA Compact Substation Compact Power Transformer

Detailed Specification:

Model	YBP
Rated Capacity	500 kVA-10000 kVA
Rated Voltage(HV/LV)	HV:33kV/20kv/11kv/6kv LV:0.48 kV/6kv/11kV
Frequency	50 Hz/60Hz
Winding Material	Copper
Core Materials	Silicon Steel
Insulation Level	as Per IEC Standard
Class of Protective Enclosure	IP44/IP54
IP CODE(T/H/L)	IP54/IP54/IP54
Lightning Impulse Withstand Voltage	as Per IEC Standard

Ambient conditions for Conventional transformers using:

– Ambient temperature: Maximum +40ºC

Minimum -25ºC

– Relative humidity: At 25ºC, not higher than 95% for daily average humidity and not higher than 90% for monthly average ambient temperature.

– Altitude: less than 1000 meters.

– Seismic level: less than 3m/s²at horizontal direction and less than 1.5m/s² at vertical direction.

– Installation environment: No obvious and heavy pollution, no explosive and corrosive gas and dust, with good air ventilation and no severe vibration and shock.

(Note: if the application environment is different from the above standard service conditions, please contact us for customized designs.)

Products’ Features:

– Fully functional and reliable
– Less investment, less land occupation, quick effect
The product adopts a closed design as a whole, the shell can be grounded, and no insulation distance is required, which fully guarantees personal safety.
The transformer room can be equipped with a protective net to prevent accidental entry into the transformer room.
– Excellent temperature rise and heat dissipation design
The shell adopts a special ventilation structure, and the optimized design makes the product have a stronger heat dissipation capacity. The temperature rise level of the shell meets the requirements of the highest level of 10K specified by the national GB standard and the international IEC standard.
– Excellent environmental adaptability
Provide a variety of shells for users to choose, including ordinary steel plate shell, composite plate shell, stainless steel plate, etc.
– Rich structure and flexibility
