PRODUCTTransformer Radiators Transformer Corrugated Radiator Cooling Fin Panel

Transformer Corrugated Radiator Cooling Fin Panel

Application scenarios	Send drawings and specifications to get a quote.

OEM size Transformer Corrugated Radiator Cooling Fin Panel

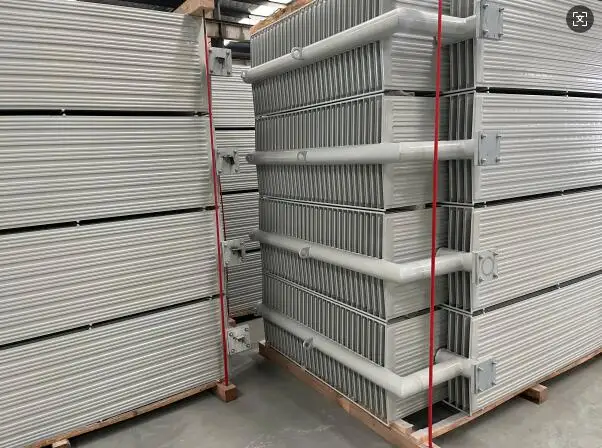

Transformer Corrugated Wall Panels	Transformer corrugated wall panels (Corrugated fin) are used in distribution transformers. This made up of cold-rolled steel plate ranging from 1.2 to 1.6mm thickness. The width of the panel varies (fan wall) from 400 to 1600 mm and the height of the fin varies from 50 to 400 mm. The oil channel is from 6-8mm. the fin pitch from 40mm to 80mm, Edge Rear based on Customer’s requirements.
Transformer Tank with Corrugated Walls	Tanks with corrugared walls and conservators are tight welded and produced according to customer’s design and relevant welding standars by experienced welders. Leak tightness tests are carried out by means of penetrometer under pressure by using of penetration liquid.

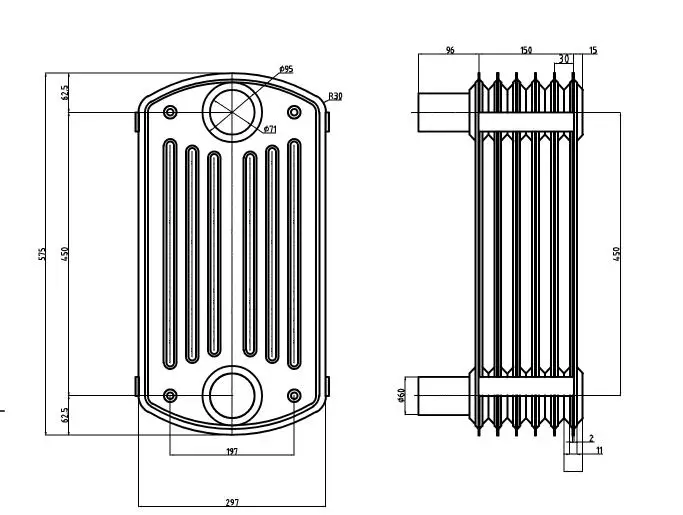

Dimensions (According to custormers’ requirements)

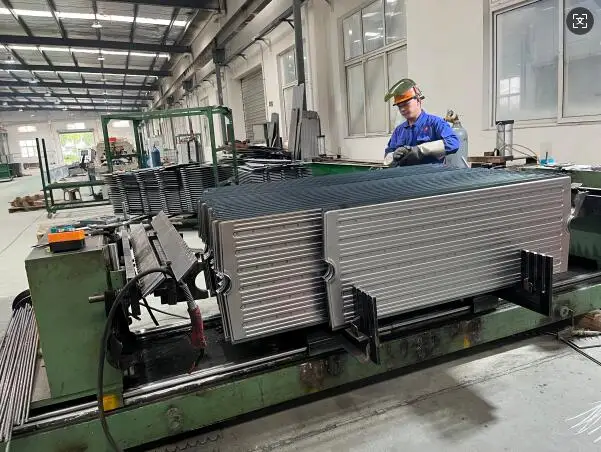

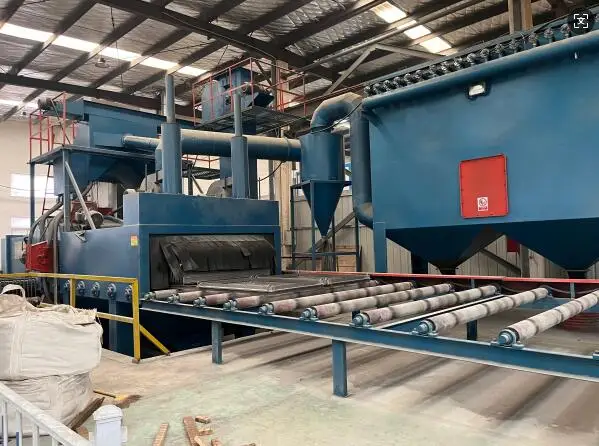

Production Equipment

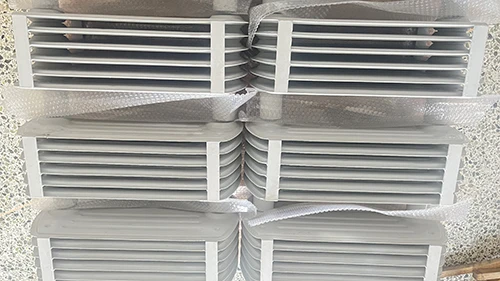

Packaging
Application
