American Box-Type Combined Transformer

Introduction

With the rapid growth of urban construction, renewable energy, and industrial expansion, the demand for efficient and compact power distribution equipment has increased significantly. Among various solutions, the American Box-Type Combined Transformer (also known as a Pad-Mounted Transformer) has become a popular choice worldwide.

It integrates a high-voltage switch, transformer body, and low-voltage distribution unit into one compact unit, offering a cost-effective and reliable solution for modern power distribution networks.

What Is an American Box-Type Combined Transformer?

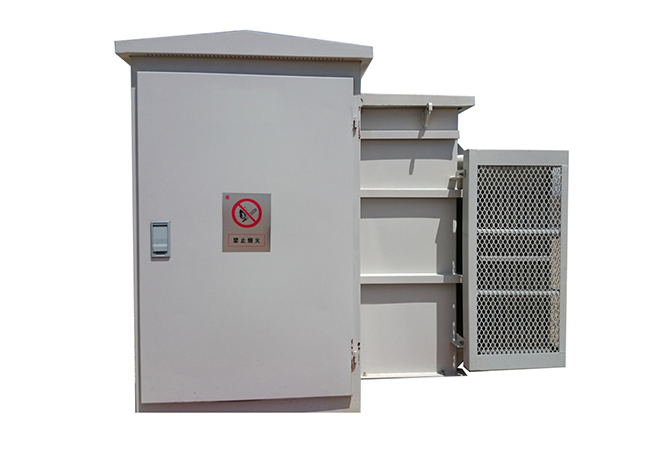

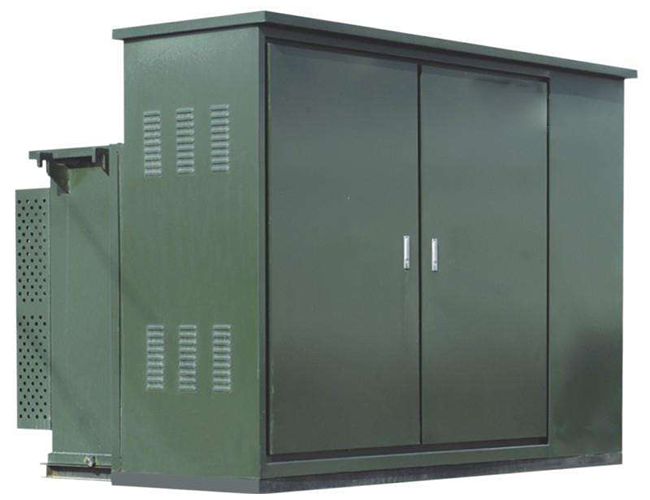

An American Box-Type Combined Transformer is a sealed oil-immersed transformer designed for outdoor installation. Unlike traditional substations, it requires no separate building and can be directly installed on a concrete pad.

Main Features:

• Compact Design – Saves space and reduces construction costs.

• Sealed Structure – Oil-filled body prevents moisture and dust, ensuring long service life.

• Integrated Functionality – High-voltage switch, transformer, and low-voltage distribution combined in one unit.

• Easy Installation – No special room required, quick to deploy.

Key Advantages of American Box-Type Combined Transformers

1. Cost-Effective

   • Generally 15–30% cheaper than European box-type substations.

   • Lower installation and civil engineering requirements.

2. High Reliability

   • Oil-immersed cooling improves overload capacity.

   • Stable performance under harsh outdoor conditions.

3. Easy Maintenance

   • Simple structure and widely available spare parts reduce service costs.

4. Flexible Applications

   • Suitable for both urban and rural power networks, as well as renewable energy projects.

Applications of American Box-Type Combined Transformers

• Residential Areas
  Provide safe and stable electricity for housing communities, villas, and apartment complexes.

• Commercial Projects
  Widely used in shopping centers, business parks, office buildings, and hotels.

• Industrial Facilities
  Ideal for small and medium-sized factories that require reliable distribution systems.

• Renewable Energy Systems
  Essential for solar farms, wind power plants, and energy storage systems due to their compact structure and low cost.

• Municipal and Public Infrastructure
  Applied in hospitals, schools, subways, and airports where reliable power is critical.

  Name	Unit	Technical Parameters
  Rated voltage	kV	10/0.4(High/Low)
  Maximum operating	kV	12(High/Low)
  Rated frequency	Hz	50
  Rated capacity	kVA	50-3000
  1 minute power frequency withstand voltage	kV	35
  Lightning impulse voltage	kV	75
  Cooling method		ONAN
  High-voltage fuse breaking current reserve	kA	50
  Plug-in fuse breaking current	kA	2.5
  Ambient temperature	ºC	-35~+40
  Coil allowable temperature rise	ºC	65
  No-load voltage regulation		±5%or±2*2.5%
  Noise level	db	50
  Protection class		IP43



Comparison: American vs. European Box-Type Combined Transformers

👉 For projects with tight budgets and fast installation requirements, the American Box-Type Combined Transformer is the preferred solution.

Conclusion

The American Box-Type Combined Transformer is a practical, reliable, and cost-effective choice for modern power distribution. With its compact design, lower price, and wide range of applications, it is increasingly favored by real estate developers, EPC contractors, and renewable energy companies worldwide.

If you are looking for a budget-friendly yet highly efficient transformer solution, the American Box-Type Combined Transformer is the right investment.
