Introduction: Why Transformer Cooling Matters More Than Ever

In modern power systems, transformers play a critical role in ensuring stable and efficient electricity transmission. However, one of the most overlooked yet essential components in transformer performance is the cooling system—specifically, the transformer radiator panels.

At ZTELEC Yuguang Electric Technology (Henan) Co., Ltd., we specialize in manufacturing high-performance transformer radiator panels designed to maximize heat dissipation, extend transformer lifespan, and reduce operational risks.

Whether for utility-scale substations, industrial power systems, or offshore applications, choosing the right radiator solution directly impacts efficiency, reliability, and maintenance costs.

What Are Transformer Radiator Panels?

Transformer radiator panels are heat exchange components used primarily in oil-filled transformers. Their main function is to dissipate heat generated by transformer operation.

How They Work:

• Transformer oil absorbs heat from windings and core
• Hot oil flows into radiator panels
• Heat is transferred to ambient air through fins
• Cooled oil returns to the transformer tank

This continuous cycle ensures stable temperature control under full load conditions.

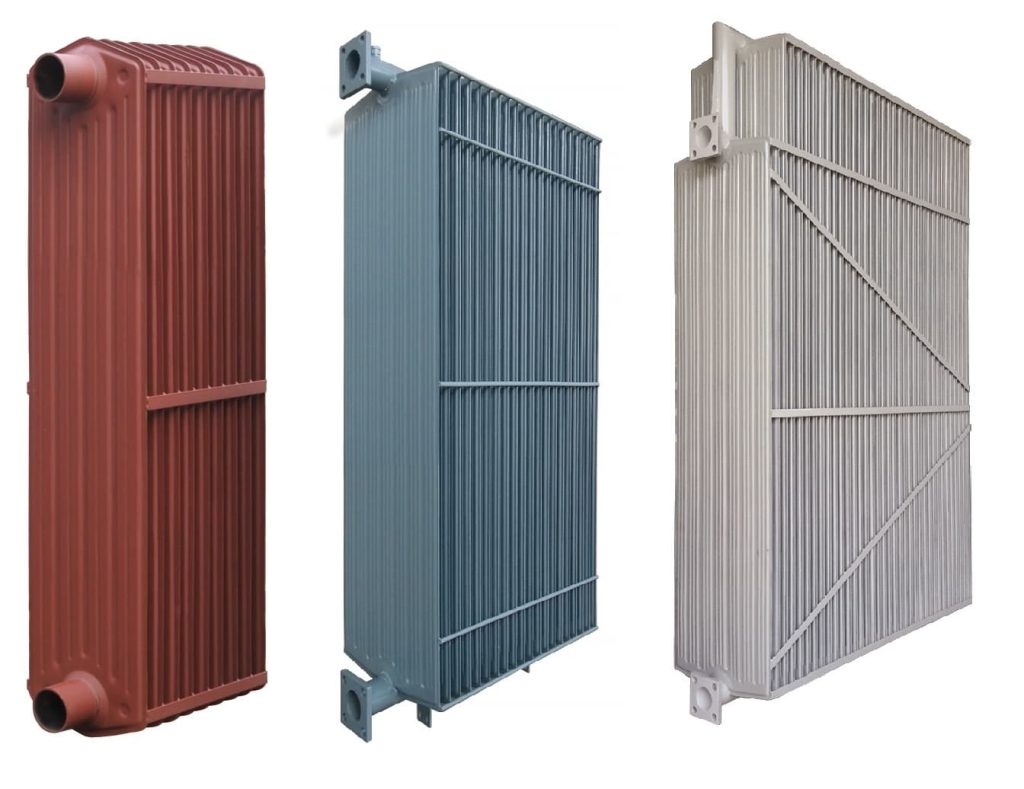

Types of Transformer Radiator Panels

1. Corrugated Fin Radiators

• Most common design
• High surface area for efficient cooling
• Lightweight and compact

2. Detachable Radiator Panels

• Easy maintenance and replacement
• Suitable for large transformers

3. Welded Panel Radiators

• Strong structure
• Leak-proof design
• Long service life

At ZTELEC Yuguang, we offer all types with custom configurations based on project requirements.

Why Choose Custom Transformer Radiator Panels?

Every transformer operates under unique conditions. Standard radiators may not always deliver optimal performance.

Key Benefits of Customization:

✔ Optimized Heat Dissipation

Custom size, fin spacing, and thickness improve cooling efficiency.

✔ Space Adaptability

Designed to fit specific transformer tank structures.

✔ Enhanced Durability

Materials selected based on environment (marine, desert, industrial).

✔ Improved Energy Efficiency

Better cooling = reduced losses = lower operating cost.

Applications of Transformer Radiators

Our radiator panels are widely used in:

• Power transmission substations
• Industrial plants
• Renewable energy systems (solar & wind)
• Offshore and marine projects
• Floating desalination units (FDU)

Especially in harsh environments, high-quality radiators are essential to ensure long-term performance.

Why ZTELEC Yuguang?

1. Professional Manufacturer

With years of experience in transformer components, we understand global market requirements and standards.

2. OEM/ODM Customization

We provide:

• Drawing-based production
• Size customization
• Material selection
• Surface treatment options

3. Strict Quality Control

All products undergo:

• Pressure testing
• Leak testing
• Coating inspection
• Performance verification

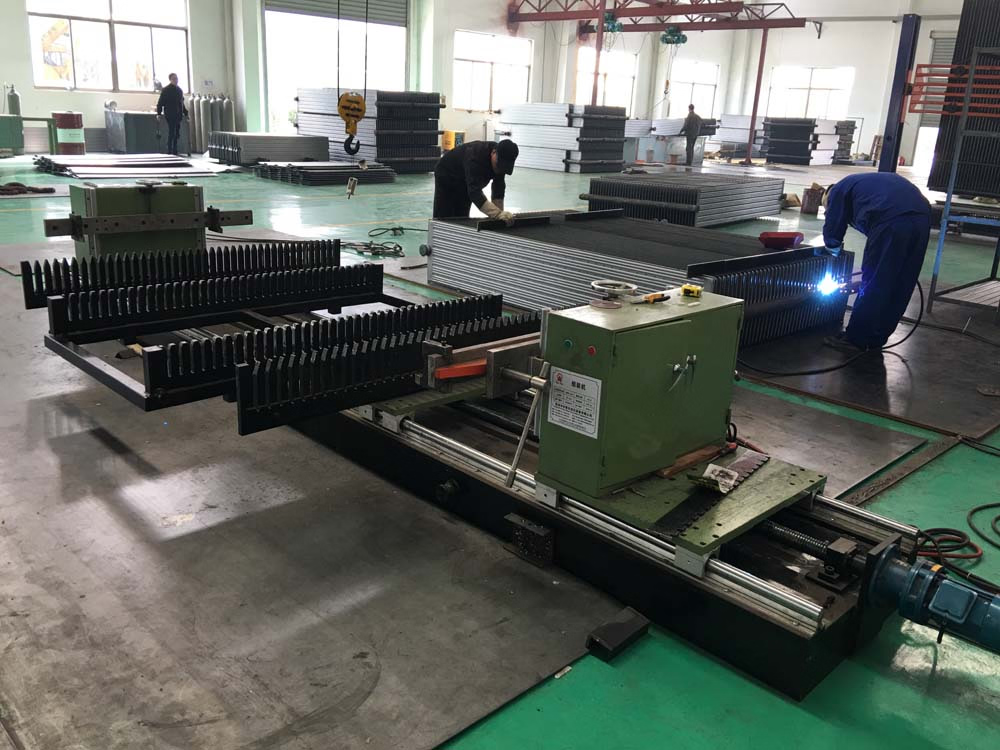

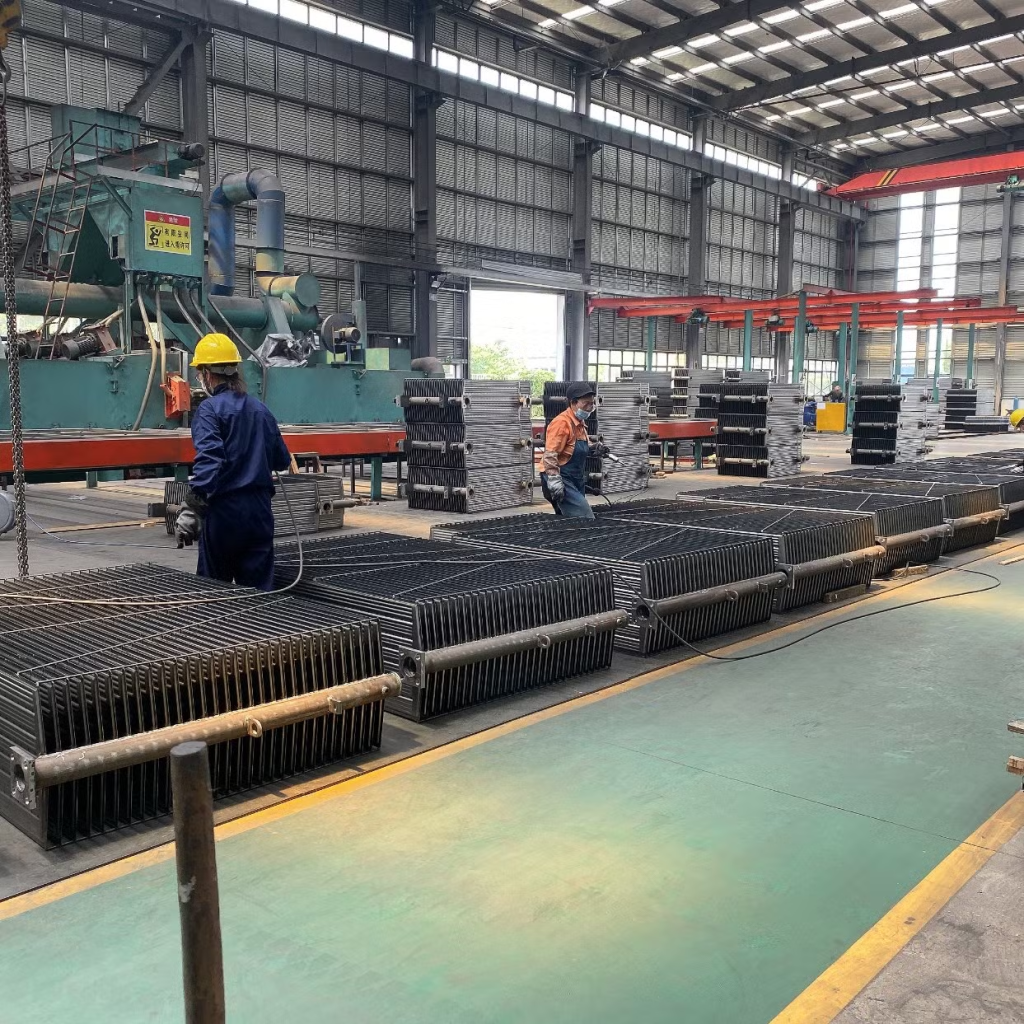

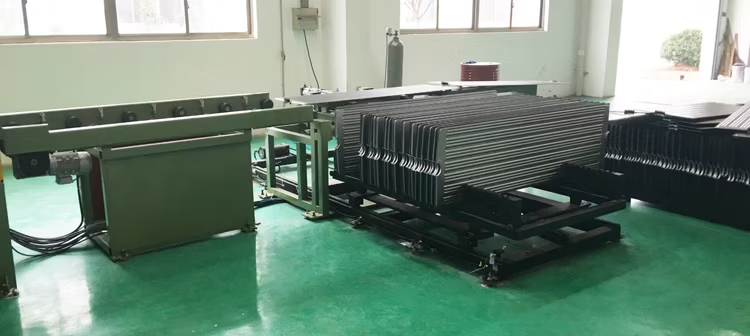

4. Advanced Production Line

• Automated welding

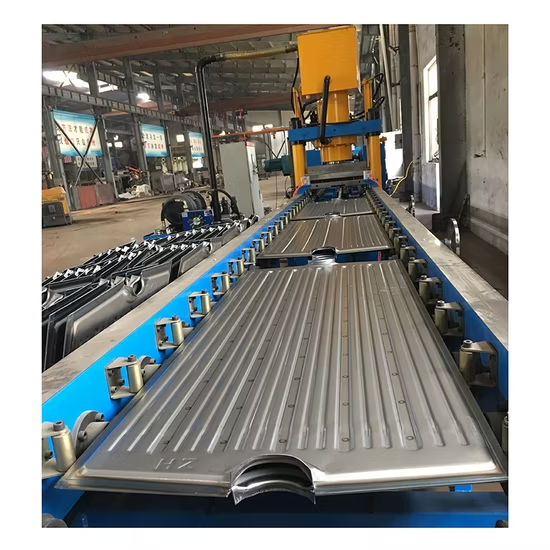

• Precision forming
• Anti-corrosion coating systems

5. Global Export Experience

We supply to:

• Asia
• Africa
• South America
• Middle East

Key Technical Advantages

 High Heat Transfer Efficiency

Optimized fin structure increases cooling surface area.

 Corrosion Resistance

Special coatings for:

• Salt spray environments
• High humidity
• Industrial pollution

 Leak-Proof Design

Precision welding ensures long-term oil sealing.

 Long Service Life

Designed for 20+ years operation.

Material & Surface Treatment Options

• Carbon steel radiator panels
• Galvanized steel
• Epoxy powder coating
• Anti-corrosion marine coating

Custom solutions available based on project needs.

How to Choose the Right Transformer Radiator?

When selecting radiator panels, consider:

1. Transformer Capacity (kVA/MVA)

Higher capacity requires larger cooling area.

2. Cooling Method

• ONAN
• ONAF

3. Installation Environment

• Indoor / Outdoor
• Marine / Desert

4. Space Constraints

Panel size must match transformer layout.

Common Problems & Solutions

Problem 1: Overheating

 Solution: Increase radiator surface area or upgrade cooling system

Problem 2: Oil Leakage

 Solution: Use high-quality welded panels

Problem 3: Corrosion

 Solution: Apply anti-corrosion coating

Why High-Quality Radiators Increase ROI

Investing in premium radiator panels can:

• Reduce maintenance costs
• Extend transformer lifespan
• Improve system reliability
• Lower energy losses

OEM/ODM Services by ZTELEC Yuguang

We provide full customization services:

• Custom drawings
• Sample production
• Batch manufacturing
• Fast delivery

 Ideal for:

• Transformer manufacturers
• EPC contractors
• Electrical equipment suppliers

Fast Delivery & Global Support

• Flexible production capacity
• Short lead time
• Export packaging
• Technical support

Conclusion

Transformer radiator panels are not just accessories—they are essential for ensuring efficient and reliable transformer operation.

At ZTELEC Yuguang, we combine advanced manufacturing, strict quality control, and customized solutions to deliver high-performance radiator panels for global customers.

👉 Looking for a reliable transformer radiator manufacturer?
Contact ZTELEC Yuguang today for:

• Custom solutions
• Competitive pricing
• Fast quotation
