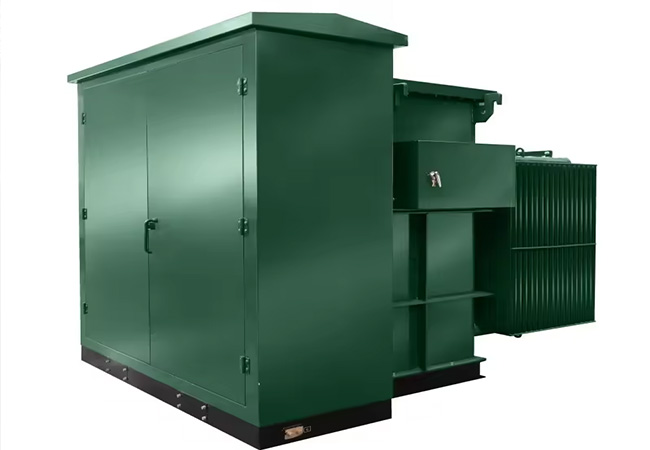

Zgs 3 Phase Pad-Mounted Transformer Factory-ZTELEC YUGUANG
08-04 2025 | By:
-
VOLTAGE RATINGSPRIMARY VOLTAGE2.4 kV ~ 34.5 kVSECONDARY VOLTAGE208Y/120V, 480Y/277V, or 600V (three-phase)
-
CAPACITYPOWER RANGE75 kVA ~ 5000 kVA,APPLICABILITYSupporting industrial machinery, data centers, and large-scale renewable energy systems.
-
COOLINGCOOLING METHODOil-immersed (ONAN/ONAF) or dry-type (ventilated or cast resin) configurationsCOOLING METHODCompliant with IEEE C57.12.25 temperature rise limits
-
EFFICIENCYCOOLING METHODMeets or exceeds IEEE C57.12.00, IEC 60076, and NEMA ST-20 standards.
Zgs 3 Phase Pad-Mounted Transformer Factory-ZTELEC YUGUANG
Technical Characteristics of Pad Mounted Transformer
Place of Origin China Brand Name EverNew Model Number ZGS Coil Number 2 winding Coil Structure TOROIDAL Product name Pad mounted transformer Type Loop Feed Rated capacity 75-5000KVA Application Mining Standard IEC ANSI IEEE Frequency 50/60Hz Material Aluminum/ Copper Primary voltage 34.5/24.94/13.8/13.2/12.47kv Customized Secondary voltage 0.38KV /0.4kV /0.415kV Customized Winding Configuration Delta – Wye / Wye – Wye/ Delta – Delta/ Wye – Delta Tapping Range ±2 x 2.5% Impedance 4.35-5.75% Vector Group As per requirement Type of Installation Indoor / Outdoor Mounting Pad-Mounted Efficiency DOE 2016 Standard Compliant Warranty 24 Months Voltage Level of Pad Mounted Transformer
Tachnical Data for Three Phase Pad Mounted Transformer Rated Power(KVA) Loss (W) Dimension(mm) Weight(kg) No-load Loss (W) On-load Loss (W) W D H 75KVA 180 1250 1390 910 1430 645 150KVA 280 2200 1510 980 1530 989 300KVA 480 3650 1660 1080 1680 1415 500KVA 680 5100 1810 1160 1790 1905 750KVA 980 7500 2030 1300 2030 2755 1000KVA 1150 10300 1651 1549 1854 3235 1500KVA 1640 14500 2210 1470 2150 5835 2000KVA 2160 20645 2380 1600 2220 6430 2500KVA 2680 27786 3070 1650 2330 8865 3000KVA 3300 30300 3260 1850 2460 11300 3750KVA 4125 37875 4080 2060 2680 14400
