1000kva KNAN Oil Immersed Power Distribution Transformer
07-01 2025 | By:
(Mineral) Oil Natural Air Natural (ONAN) – The core and coils are cooled by surrounding in oil. Heat transfer of oil by natural air convection.
(Non-Mineral) Oil Natural Air Natural (KNAN) – The core and coils are cooled by surrounding in synthetic oil. Heat transfer of oil by natural air convection.
The cooling ways of the oil immersed transformers depend on the fire point of the oil being used in the transformer. Mineral oils are symbolized with “O” since their fire point is below 300°C. Non-mineral oils such as silicone oil, Synthetic Esterand Natural Ester (vegetable oils) are designated with “K” since their fire point is above 300°C.

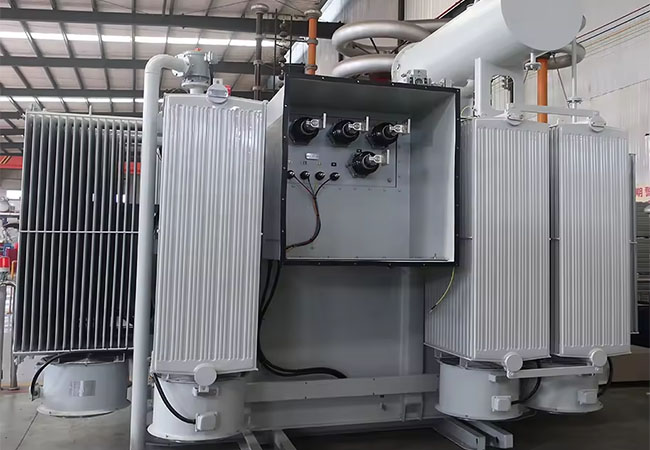

1000kva KNAN Oil Immersed Power Distribution Transformer
Non-mineral oils are more expensive but they have different advantages based on the application area of the transformers asked. Non-mineral oils can be devided into two types: synthetic ones and natural ones. Both have higher flashing points and thus are more safe to use in explosive areas defined as Zone 1 and Zone 2.
China 6.3 MVA ONAN Oil Immersed Power Transformer Tranfo with OLTC 33KV
Product overview
The 1000kva KNAN Oil Immersed Power Distribution Transformer is engineered for marine applications, featuring a robust three-phase layer coil design. With a rated capacity of 30-15,000kva and voltages ranging from 10kV to 35kV, it meets international standards such as IEC60076 and ANSI. Crafted with durable copper or aluminum materials and effective CRGO silicon steel core, this transformer ensures reliable performance and cooling options (ONAN/ONAF). Achieve superior distribution efficiency with an ISO/CE certified product suited for bulk procurement needs. Explore wholesale opportunities to enhance your operations with this essential transformer solution.
Selling point
- High-Capacity Performance: The S13 Power Distribution Transformer features an impressive rated capacity ranging from 1,000 kVA to 15,000 kVA, tailored to meet the robust energy demands of marine applications efficiently.
- Customized Solutions: Available in various rated voltage options between 10 kV and 35 kV, this transformer can be tailored to suit specific operational requirements, ensuring compatibility with a broad spectrum of marine electrical systems.
- Premium Material Construction: Crafted with high-quality copper or aluminum windings and an advanced CRGO silicon steel core, this transformer provides superior conductivity and durability, optimizing energy efficiency and enhancing overall performance.
- Cooling Systems for Reliability: Equipped with ONAN or ONAF cooling methods, the transformer maintains optimal operational temperatures, ensuring consistent performance during heavy-load operations in maritime environments.
- Rigorous Standards Compliance: Conforming to international standards such as IEC60076 and ANSI, alongside certifications from ISO and CE, the S13 guarantees safety and reliability, priming it for critical industrial applications.
- Robust Packaging: The transformer is securely packaged in an inner plastic film and wooden case, ensuring protection during transport and contributing to a hassle-free delivery experience, crucial for businesses prioritizing logistics.
- Strong Manufacturing Capacity: With a supply ability of up to 300 units per month from Hunan, China, this reliable product can support high-volume purchasing needs, making it an ideal choice for large-scale projects or ongoing operations.
Detailed description
The S13 1000kva Oil Immersed Power Distribution Transformer is engineered as a reliable solution for marine applications, ensuring high efficiency and durability in demanding environments. This distribution transformer features a three-phase design and offers a rated capacity of 1000kva, making it suitable for various power distribution needs onboard vessels.
Constructed with high-quality materials, the transformer utilizes a core made of CRGO silicon steel, renowned for its superior magnetic properties, which enhance performance and energy efficiency. Additionally, buyers can choose between copper and aluminum winding, allowing them to select a configuration that best suits their operational requirements and cost considerations.
Designed to meet international standards, including IEC60076 and ANSI, the S13 is certified by ISO and CE, ensuring it adheres to strict safety and quality benchmarks. It operates at a frequency of 50/60Hz and supports a range of rated voltages from 10kV to 35kV, which allows for flexibility in installation across different marine platforms.
This transformer is equipped with an ONAN or ONAF cooling system, ensuring efficient heat dissipation under varying load conditions. The use of dielectric liquids such as mineral oil or FR3 oil further enhances its thermal management capabilities, making it adept at maintaining optimal performance even in high-demand scenarios.
The packaging of the S13 includes a protective inner plastic film and a sturdy wooden case, ensuring the transformer remains securely packaged during transit. Such attention to packaging not only aids in protecting the product but also reflects the brand’s commitment to quality during delivery.
With a supply capacity of 300 pieces per month, offers consistent availability for businesses looking to fulfill their power distribution needs efficiently. The customizable options in color and dielectric liquid also provide added flexibility, making it suitable for a wide range of marine applications.
Overall, the S13 1000kva Oil Immersed Power Distribution Transformer stands out as a versatile, high-performance solution tailored for marine environments, backed by rigorous safety certifications and quality materials that ensure reliability and longevity wherever it is deployed.
About 1000kva Oil Immersed Transformer
The 1000kva oil immersed transformer is a crucial component in power distribution systems, designed to step down high voltage electricity for safe usage in various industrial and commercial applications. Traditionally housed in a robust, oil-filled tank, this type of transformer utilizes mineral oil for cooling and insulation, ensuring efficient thermal management and long-term operation. Its reliable performance and durability make it an ideal choice for facilities with significant power demands, where consistent and reliable voltage levels are essential. With features such as overload protection, these transformers can significantly enhance energy distribution efficiency and safeguard electrical equipment.
What applications are suitable for 1000kva oil immersed transformers?
They are ideal for industrial plants, commercial buildings, substations, and power distribution networks needing efficient voltage regulation and power transformation.
How does the oil used in these transformers enhance performance?
The mineral oil provides insulation and efficient cooling, reducing the risk of overheating and ensuring safe operation under load.
What are the maintenance requirements for oil immersed transformers?
Regular maintenance includes checking oil levels, inspecting for leaks, testing insulation resistance, and monitoring temperature levels to ensure continued reliability.
What safety features do 1000kva oil immersed transformers include?
They typically incorporate features such as pressure relief valves, temperature monitoring systems, and fusing to protect against overload and mitigate fire risks.
How can businesses benefit from using oil immersed transformers?
Businesses benefit from improved energy efficiency, reduced downtime due to reliable voltage regulation, and lower long-term operational costs for their electrical systems.
