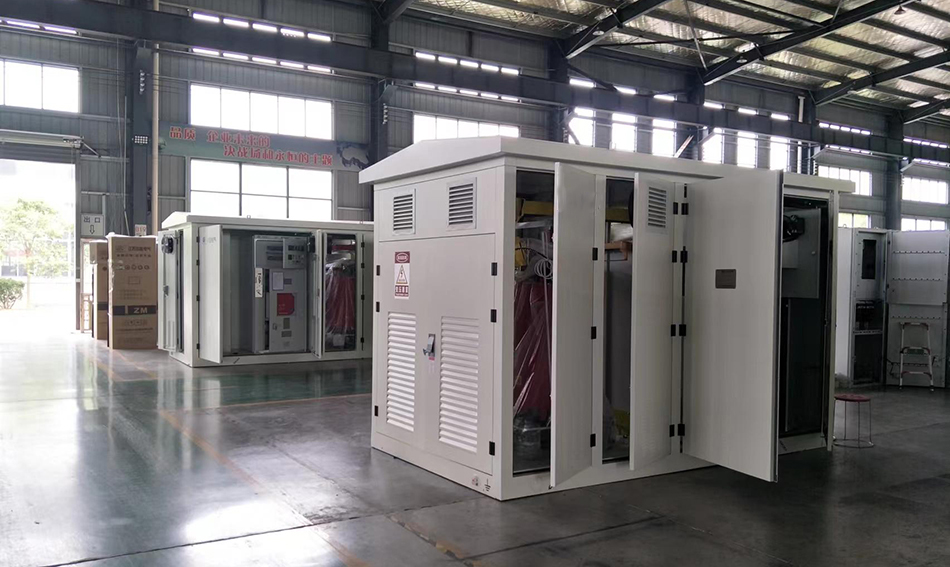

2000kVA 10.5kV Step-Up Prefabricated Substation for Solar Power Project
05-25 2026 | By:
ZTelec Yuguang Successfully Delivered 2000kVA PV Step-Up Compact Substation
To support the growing demand for renewable energy infrastructure, ZTelec Yuguang successfully supplied a 2000kVA 10.5kV Step-Up Prefabricated Substation for a photovoltaic power generation project.
The project adopts a European Type Compact Substation integrated with a 2000kVA dry-type step-up transformer, specifically designed for solar power transmission and medium-voltage grid connection applications.
Project Overview
| Item | Specification |
|---|---|
| Product Type | Solar PV Step-Up Prefabricated Substation |
| Substation Style | European Type Compact Substation |
| Transformer Type | 2000kVA Dry-Type Step-Up Transformer |
| Rated Capacity | 2000kVA |
| High Voltage | 10.5kV |
| Low Voltage | 0.8kV |
| Cooling Method | AN / AF |
| Application | Solar Power Plant |
| Frequency | 50Hz / 60Hz |
| Standards | IEC Standard |
Reliable Solution for Solar Energy Systems
The prefabricated substation is specially engineered for photovoltaic power stations, providing efficient voltage boosting from inverter output voltage to medium-voltage grid transmission level.
The compact design integrates:
- Medium Voltage Switchgear
- Dry-Type Step-Up Transformer
- Low Voltage Distribution Cabinet
- Protection & Monitoring System
- Intelligent Control Components
This integrated solution greatly reduces installation time, onsite construction costs, and maintenance workload for EPC contractors and solar project developers.

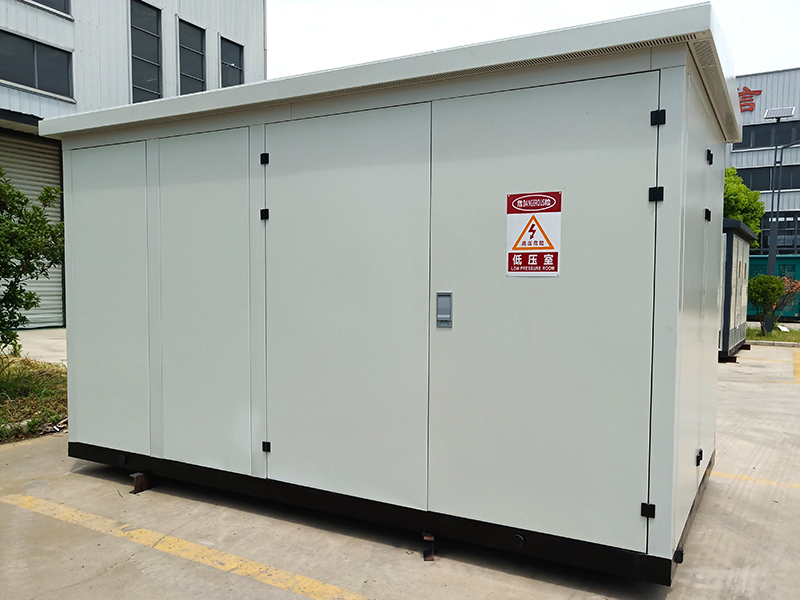

SCB13-2000kva10.50.8kV Step-Up Prefabricated Substation
Advantages of ZTelec Yuguang PV Step-Up Substation
High Safety Dry-Type Transformer
The SCB13 dry-type transformer features excellent fire resistance, low partial discharge, high thermal stability, and environmentally friendly operation, making it ideal for solar energy applications.
Compact European Design
The European-style enclosure provides excellent protection against dust, humidity, and harsh outdoor environments while optimizing installation space.
Stable Grid Connection
Designed for stable and efficient power transmission, the substation ensures reliable voltage boosting from 0.8kV to 10.5kV for renewable energy systems.
Custom Engineering Support
ZTelec Yuguang supports customized solutions including:
- 800kVA–5000kVA capacities
- 6kV / 10kV / 11kV / 33kV systems
- Solar and wind power substations
- Outdoor and containerized substations
- IEC / ANSI standard designs
Applications
Our solar step-up prefabricated substations are widely used in:
- Photovoltaic Power Plants
- Renewable Energy Projects
- Solar Farms
- Industrial Power Systems
- Energy Storage Stations
- Utility Distribution Networks
Why Choose ZTelec Yuguang?
- Professional Transformer Manufacturer
- Rich Solar Project Experience
- Strict Factory Testing
- Fast Delivery Time
- Global Export Service
- Technical Support for EPC Projects
- High Reliability & Long Service Life
Contact ZTelec Yuguang
Looking for a reliable 2000kVA solar step-up compact substation manufacturer?
ZTelec Yuguang provides professional transformer and substation solutions for global renewable energy projects.
Contact us today for:
- Technical drawings
- Factory pricing
- OEM customization
- Fast quotation
- Project engineering support
