Indoor 6kV voltage transformer

06-20 2025 | By:

This 6kV voltage transformer is a cast indoor voltage transformer and a voltage transformer with fuse. It is suitable for indoor installation and can be used as a voltage transformer for metering, measurement and protection. This page mainly introduces the model, price, ratio, wiring diagram, function, protection and nameplate parameters of Indoor 6kV dry voltage transformer.

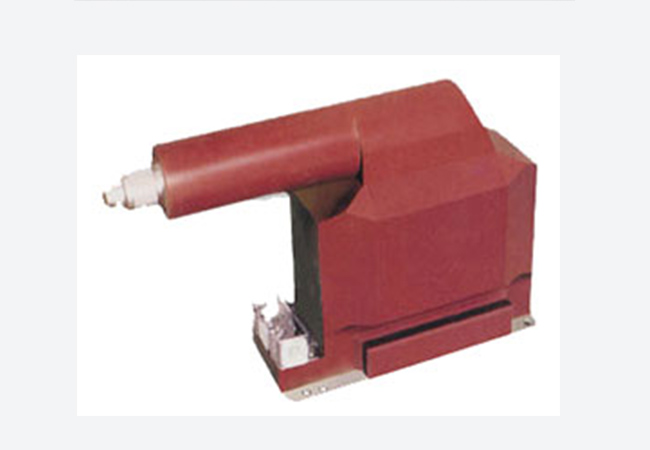

Indoor 6kV voltage transformer

The voltage ratio (ratio) (V) is: 6000/√3/100/√3/100/3, 6000/√3/100/√3/100/√3/100/3; accuracy level: 0.2, 0.5, 6P; working voltage is 6kV

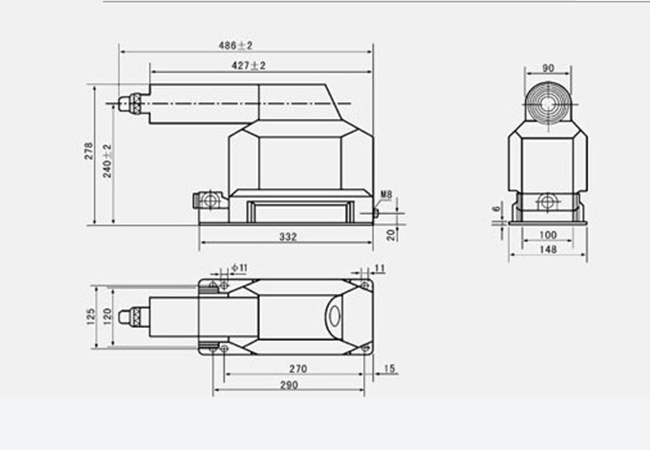

Structure
This voltage transformer has a fuse protection at the primary side, and the fuse is installed inside the transformer. The primary and secondary windings and the core structure are cast in epoxy resin, with excellent insulation performance and moisture resistance. Indoor epoxy resin cast fully enclosed voltage transformer, suitable for voltage, electric energy measurement and relay protection in neutral point non-effectively grounded power systems with rated frequency of 50Hz or 60Hz and rated voltage of 6kV and below. Product symbol IEC60044-2-1997 and GB1207-1997 “Voltage Transformer” standard.

* We try our best to help you complete all requirements, including product design, non-standard products and OEM, etc.
